Split System DQ 3600
Split System DQ 3600The Dual Air Quiet Cooling Series is designed to be installed in the middle of the room from the ceiling. DQ Systems provide two way air discharge and medium velocity air flow. The DQ system is also ideal for long narrow cellars. Efficient and dependable DQ Systems are easy to install, require very low maintenance and will provide years of reliable service.

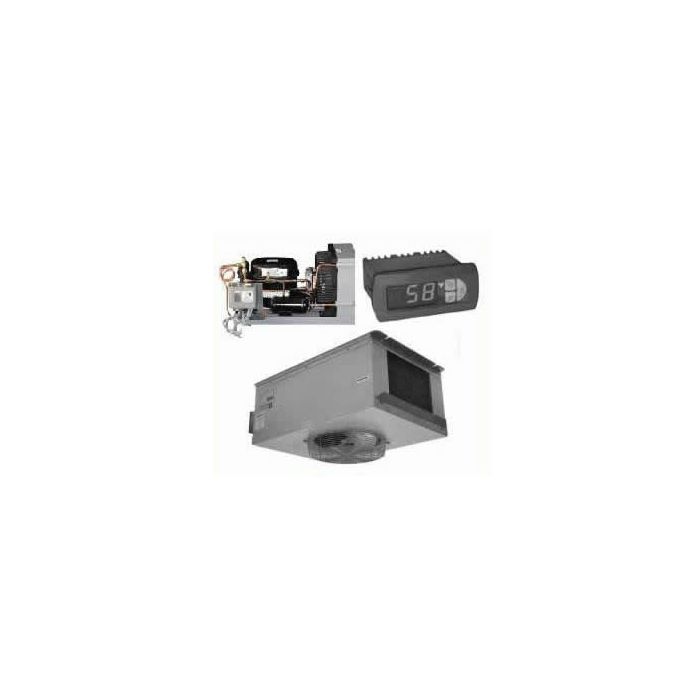

Includes: Evaporator, Condensing Unit & Temperature Control. For cellars exceeding 1,000 cubic feet, please call our design team for custom options.
*Please allow 7-10 days before shipping. Installation: EPA Certified Refrigeration Technician Required
- Split System Cooling Efficiency
- Ceiling Mount
- Set it & Forget it Programmable temperature Control
- High and Low alarm system
- Low maintenance
- Thermally protected motor and low noise fan blades
- High performance staggered coils
- Rust proof, all aluminum construction
- Factory wired for easy field installation
- Pressure tested to eliminate leaks
- ETL certified
What's included in my shipment?
- Condensing Unit & Temperature Control. For cellars exceeding 2,000 cubic feet, please call our design team for custom options.
- Connection Suction (In.) 1/2 in
- Connection Liquid (In.) 3/8 in
- Drain Line (In.) 3/8 in
- Height 9.4 in
- Width 12 in
- Length 17 in
- AMPS Running 6.1 A
- Weight 42 lbs.
- Connection Suction (In.) 3/8 F
- Connection Liquid (In.) 1/4 F
- Height 9.5 in
- Width 17.5 in
- Length 23 in
- Capacity Up to 650 Cu. Ft.
- BTU 3,600
- AMPS Running 0.06 A
- Electrical Requirements 115V
- Weight 35 lbs.
Line Set Between Coils
- Suction (In.) 3/8 in
- Liquid (In.) 1/4 in
- Easy Wire Harness Model # SSDC2WH25
- UL Listed Outdoor Cover
- Please allow 7-10 days before shipping.
- Installation: EPA Certified Refrigeration Technician Required.
Manuals & Guides
Split System DQ Series Manual - PDF
Split System Installation Guide
Part 1 - Installation Digital Controllers Wiring
Part 2 - Wiring Digital Controllers & Evaporator Coils
Part 3 - Digital Controller Set- Up
