WhisperKOOL Platinum Split Twin Fully Ducted Split System
WhisperKOOL Platinum Split Twin Fully Ducted Split System

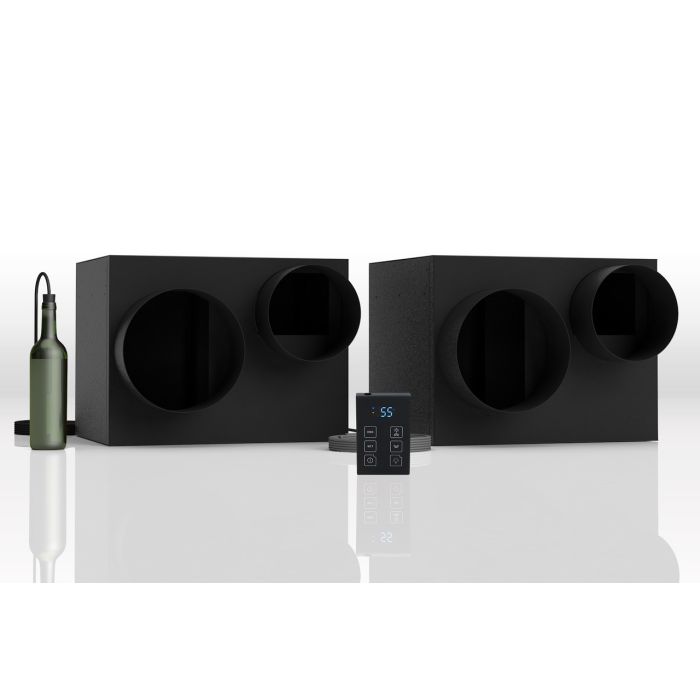

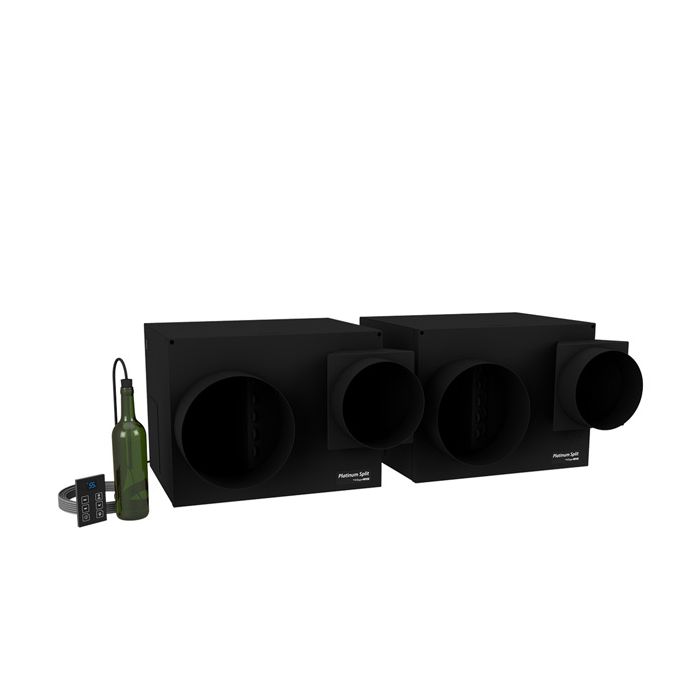

The WhisperKOOL Platinum Split Fully Ducted Twin system uses two Platinum evaporators. This system offers the proven performance of the traditional Platinum Split, but provides double the cooling power. The internal components and outer housing have remained practically unchanged, simplifying installation and maintenance. The dual evaporators ensure that the efficiency and coverage of the system’s cooling power can be maximized.
When fully ducted, this system’s operation becomes virtually silent. Ducting a split system also allows for more flexible installation options. When ducted, evaporators may be installed up to 25 feet from the cellar. This system makes use of WhisperKOOL’s liquid-temperature-measuring bottle probe, which monitors the actual temperature of the wine to ensure that it is being kept at the correct temperature. The fully ducted Platinum Split Twin’s combination of quiet operation, doubled cooling power, flexible installation options, and ease of maintenance make it a dynamic addition to the WhisperKOOL split system line.
NOTE: The Platinum Split Twin system must be installed by a qualified HVAC-R technician. Failure to have the system installed by a qualified technician will void the warranty.
More Information about Wine Cellar Cooling Systems
24V Thermostat Conversion Kit:
The new 24-volt thermostat conversion kit for WhisperKOOL split systems** is the latest technology to manage and monitor your wine cellar environment with WhisperKOOL.
- Utilize the industry leading technology from major manufacturers to monitor the environment of your cellar (see individual thermostat manufacturers' features and benefits for details).
- Connect your thermostat to Wi‑Fi to control the temperature from your phone, tablet or laptop.
- Monitor temperature and humidity through smart phones.
- Monitor run time and energy usage.
- Set alarm notifications.
- View your cellar conditions from your cellular device.
The use of the 24-volt thermostat conversion kit eliminates the thermostat normally included with the system and allows your contractor to select, purchase and install the thermostat technology of your choice, including but not limited to:
- Nest
- Ecobee
- Honeywell
Note:
Not utilizing the thermostat from WhisperKOOL also eliminates the use of the bottle probe. WhisperKOOL does not provide SMART thermostats. Those must be purchased separately. WhisperKOOL customer service staff does not provide technical support for the customers selected thermostat.
The 24-volt Thermostat conversion kit is currently available as an option for all Platinum and Ceiling Mount Split System models.
What's included in my shipment?
- Installation Guide
- Evaporator
- Condensing unit
- Liquid Bottle Probe
- Optional Exterior Housing
- Any upgrades purchased with unit
- 2 year parts and labor / 5 year compressor
Specifications
Condensing Dimensions
- Height 15.5 in
- Width 20.5 in
- Depth 16.1 in
- AMPS Starting 27 A
- AMPS Running 7.3 A
- Weight 67 lbs.
Evaporator Dimensions
- Height 15.5 in (x2)
- Width 20.5 in (x2)
- Depth 22.5 in (x2)
- Capacity 3000cu. ft.
- AMPS Starting 2 A
- AMPS Running 1 A
- Installation Use 8” supply and 10” return insulated ducting. (Maximum duct length is 25 total duct feet per evaporator.)
- Temp Delta 55℉ temperature differential (maintains proper cellar temperature when exhaust environment does not exceed 110℉)
- Weight 80 lbs.
Features
The unit is equipped with our Platinum Series controller utilizing Advanced System Protection Technology. This features a series of strategically placed monitoring probes, which insure efficient performance and long cooling unit life. The controller is easy to operate and has features such as adjustable humidity control, energy saving modes, quick chill mode and anti-frost function. The Platinum Mini-Split gives anyone the opportunity to have a top-quality wine cellar.
Features:
- Greater cooling capacity
- Dual evaporators
- Standard and 24V thermostat options available
- Liquid-temperature-measuringbottle probewhisperkool video icon
- Flexible installation
- 55°F temperature differential
- Suitable for temperatures as low as -15F to 110F
- Condensing unit can be placed outdoors w/optional housing
- Low ambient control.
- Pump-down system for longer compressor life*
Thermostat
Temperature Differential
Digital Thermostat
The WhisperKOOL split system is designed with a 55-degree temperature differential. This means the unit can operate correctly even if the ambient temperature outside (or where ever the condenser unit is mounted even) in 110 degree heat. This is a significant improvement over most cooling units designed for wine storage.
The system includes both the evaporator and condenser units.
The WhisperKOOL split cooling system requires professional installation by a licensed refrigeration technician. The contents of this system does not include a line set.
Additional Info
The Split System is often the most efficient way to cool a cellar. Cooling unit condensers are typically noisy and require significant space for ventilation, in most cases the cellar location does not include an area for these functions. By splitting the cooling system, the condenser can be placed in a space better suited for heat and noise dissipation while the quiet evaporator is inside, or near, the cellar. A licensed HVAC/R technician is required for the installation.
What's included in my shipment?
- Installation Guide
- Evaporator
- Condensing unit
- Liquid Bottle Probe
- Optional Exterior Housing
- Any upgrades purchased with unit
- 2 year parts and labor / 5 year compressor
- Note: The systems do not include a line set.
Manuals & Guides
- WhisperKOOL Platinum Twin Split Owners Manual
- WhisperKOOL Platinum Twin Split Owners Manual (24V)
- WhisperKOOL Platinum Twin Split Tech Manual
- WhisperKOOL Platinum Twin Split Tech Manual (24V)
- WhisperKOOL Platinum Twin Split Product Sheet
- WhisperKool Split System Checklist
- WhisperKOOL Cold Weather Kit Platinum Mini Split Installation Instructions
Next Generation Split Systems
Split System Installation Guide
Warranty
Please have technician complete and send the Split System Start Up Checklist to activate warranty coverage.
A limited 2-year parts and labor / 5-year compressor warranty is offered with all of our cooling units/systems at their date of purchase. All warranty claims must be filed directly through WhisperKool customer service (800) 343-9463 (ext. 799). We provide warranty repairs at our manufacturing facility in Stockton, CA or, with prior permission from WhisperKOOL, by a licensed HVAC/R technician. In the event a unit is not reparable in the field, and is still under warranty, we will cover shipping costs (excluding customs fees and duties).
The limited warranty applies only to wine cooling units purchased from the factory or an authorized dealer. Damage caused by others or beyond the control of WhisperKOOL, shall not be considered defects in material or workmanship and is not covered by the warranty. The limited warranty does not cover any parts or labor to correct any defect caused by negligence, commercial use, accident, maintenance, installation, service/repair, or improper use.
View the complete Warranty / Terms & Conditions:
