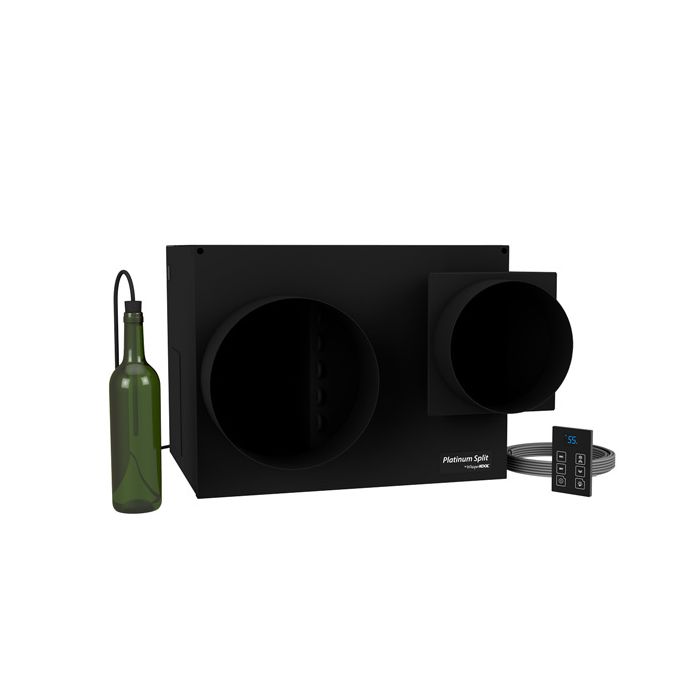

WhisperKOOL Platinum 4000 Fully Ducted Split System
The Fully Ducted Platinum Split is WhisperKool's newest model to the split line-up. Ducting a Split creates a virtually silent cellar environment and allows for maximum installation options. The system uses our liquid bottle probe for monitoring the actual temperature of the wine to ensure the wine is being kept at 55°F. The evaporator portion may be installed up to 25 duct feet from the cellar.
The WhisperKOOL Platinum series of split systems is the most efficient ever put out by WhisperKOOL. The WhisperKOOL Platinum 4000 Fully Ducted Split System is a completely new design that improves airflow efficiency by 25% while being 10% quieter and 35% smaller than previous WhisperKOOL split systems. The WhisperKOOL Platinum 4000 fully ducted cooling system uses the superb WhisperKOOL liquid bottle probe to monitor the actual temperature of the wine for more accurate cooling. The WhisperKOOL Platinum 4000 Fully Ducted system also features an advanced electronic control system, humidity control, an energy-saving mode, and alarm capabilities. For ease of installation, the WhisperKOOL Platinum 4000 Fully Ducted Split System offers flexible installation options and the choice to put your condenser outside with the optional housing. Please note that these systems do not include a line set.
The WhisperKOOL Platinum 4000 Fully Ducted Split System will cool a wine cellar up to 1000 cubic feet. For cellars up to 2000 cubic feet, there is a larger WhisperKOOL Platinum 8000 (also available fully ducted).
- Height 13.5 in
- Width 12 in
- Depth 18 in
- AMPS Starting 15 A
- AMPS Running 15 A
- Weight 56 lbs.
- Height 15.5 in
- Width 20.5 in
- Depth 24.5 in
- Capacity 1,000 cu. ft.
- BTU 4,000
- AMPS Starting 2 A
- AMPS Running 1 A
- Installation Evaporator is installed in the cellar, Condenser is installed up to 100 line ft. away.
- Temp Delta 55℉ temperature differential (maintains proper cellar temperature when exhaust environment does not exceed 110℉)
- Weight 57 lbs.
The Fully Ducted Extreme Series units can be positioned up to 25 ducted feet from the cellar, creating a noise-free cellar environment. Fully ducted installation provides many installation options, allowing you to not only put the unit in more remote areas of the home but to also have full control of where the exhaust air vents to. This series features an advanced liquid temperature controller with a remote LED display (which can be placed up to 300 line feet from the unit) and electronic thermostat. The systems are designed to maintain 55°F and 50-70% relative humidity.
The WhisperKOOL Platinum 4000 Fully Ducted Split System will cool a wine cellar up to 1000 cubic feet. For cellars up to 2000cubic feet, there is a larger WhisperKOOL Platinum 8000 (also available fully ducted). Key Features:
- Cooling unit can be located up to 25 ducted feet from the cellar
- Virtually silent operation
- Alarm capabilities
- Advanced electronic control system
- Remote digital LED readout w/ 50ft. communication line
- Liquid bottle probe
- Humidity control
- Energy saving mode
- Fully ductable
- 55°F temperature differential
- Flexible installation
- Condensing unit can be placed outdoors w/optional external housing for exterior venting
- Two year parts and labor warranty
- Pump down system for longer compressor life*
*Pump down systems are integrated into the design of our split systems to provide our customers with the most professional and reliable split cooling systems for wine cellars.
Note: The systems do not include a line set.
Condenser with Exterior Housing
Condenser without Exterior Housing
Protects the condenser portion of the split system from the elements when installed outdoors.
Remote Digital Thermostat
The WhisperKOOL split system is designed with a 55-degree temperature differential. This means the unit can operate correctly even if the ambient temperature outside (or where ever the condenser unit is mounted even) in 110 degree heat. This is a significant improvement over most cooling units designed for wine storage.
The system includes both the evaporator and condenser units.
The WhisperKOOL split cooling system requires professional installation by a licensed refrigeration technician. The contents of this system does not include a line set.
A ducted system has more installation options than a self-contained system. The unit may be installed up to 25 ducted feet from the cellar, with the cool air flowing to the cellar and the heat exhaust ducted to the outside of the home. Ducting is also a more aesthetic choice for wine collectors who do not want to see a cooling unit in the cellar. Noise from the unit will be reduced or eliminated, depending on the installation.
What's included in my shipment?
- Installation Guide
- Condensing unit
- Liquid Bottle Probe
- Optional Exterior Housing
- Any upgrades purchased with unit
- 2 year parts and labor / 5 year compressor
Manuals & Guides
- WhisperKOOL Platinum Fully Ducted Installation Instructions
- WhisperKOOL Platinum Split - Fully Ducted Owner's Manual
- WhisperKOOL Platinum Fully Ducted Product Sheet
