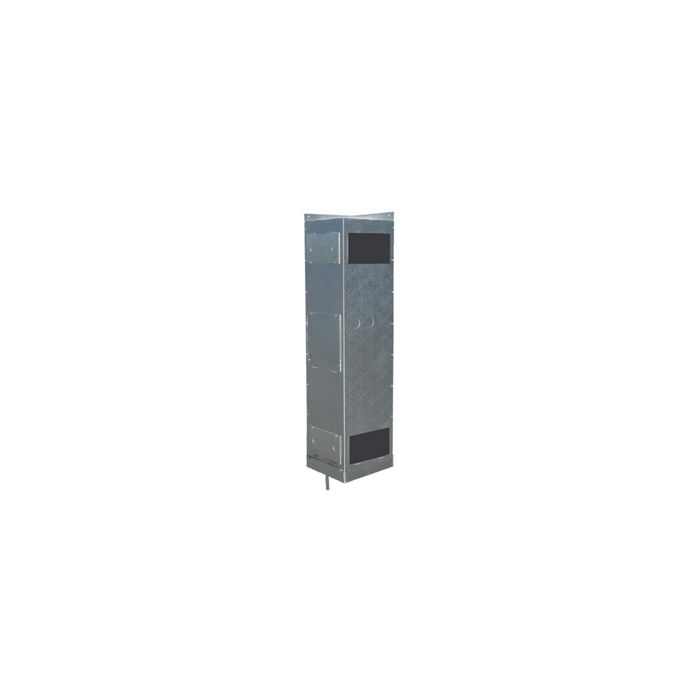

Split System VRM 8600 EC TE - Vertical Rack Mount Twin EvaporatorsThe Split System VRM 8600 TE is a Vertical Rack Mount (VRM) wine cooling unit with Twin Evaporators. This unit is designed to cool wine cellars up to 2,000 cubic feet in size. The Vertical Rack Mount (VRM) Series units are engineered to deliver refrigerated air to medium and high temperature spaces. VRM evaporators mount vertically and have multiple access panels to direct or re-direct the supply and return vents. VRM units can beplaced between ceiling joists, in a soffit, or directly onto a wall for maximum flexibility and ease with installation. All of the VRM Series units have pre-installed valves that eliminate the need for additional wiring from the thermostat. All units in the VRM Series of wine cellar cooling units are also factory wired for simple field installation which cuts down on time and hassle when setting up the unit in the desired location.
The VRM Series of wine cellar cooling systems is one of the most popular and versatile systems in the wine cellar cooling engineering community. The VRM 8600 TE unit has an extraordinary cooling capacity of 8,600 BTU per hour. VRM evaporators are manufactured in standard capacities ranging from 2,600 to 6,600 BTU per hour and are used with R134a refrigerant.
We carry a wide variety of wall and ceiling mounted systems. If you need assistance in choosing a ceiling or wall mounted split system wine cooling unit, call us at 1-800-876-8789 for expert assistance.
- High-performance staggered coils with copper tubing mechanically expanded into aluminum fins
- Rust-proof and insulated aluminum housing
- Thermally protected permanently lubricated motor
- Automatic expansion valve (standard) ensures constant coil temperature to promote "Humidity Balance"
- Pump-down solenoid valve (standard) protects compressor in the event of leaks
- Pre-installed valves eliminate additional wiring to thermostat
- Pressure tested by the manufacturer to ensure quality
- Factory wired for simple field installation
- ETL certified
What's included in my shipment?
- Condensing Unit & Temperature Control. For cellars exceeding 2,000 cubic feet, please call our design team for custom options.
- Height 12 in
- Width 14.3 in
- Length 17.5 in
- AMPS Running 20.7 A
- Weight 79 lbs.
- Connection Suction (In.) 5/8 in
- Connection Liquid 3/8 in
- Height 45.5 in
- Width 11.188 in
- Length 11.378 in
- Capacity Up to 1500 cu. ft.
- BTU 8,600
- AMPS Running 0.77 A
- Electrical Requirements 115V
- Weight 50 lbs.
Line Set Between Coils
- Suction (In.) 3/8 in
- Liquid (In.) 1/4 in
- Easy Wire Harness Model # SSDC2WH25
- UL Listed Outdoor Cover
- Please allow 7-10 days before shipping.
- Installation: EPA Certified Refrigeration Technician Required.
Manuals & Guides
Split System VRM Series Manual
Split System Installation Guide
Part 1 - Installation Digital Controllers Wiring
Part 2 - Wiring Digital Controllers & Evaporator Coils
Part 3 - Digital Controller Set- Up
Seller warrants that the goods will be free of defects in materials and workmanship as follows: All cooling unit parts are covered for a period of one (1) year from date of sale.
Purchaser's exclusive remedy is limited, at Seller's option, to repair or replace defective parts with either new or factory reconditioned parts. Unless otherwise provided by applicable law. Purchaser is responsible for shipping the unit to repair facility designated by US Cellar Systems. US Cellar Systems will pay return shipping at regular ground rates for units repaired under warranty. At the sole discretion and approval of the seller local replacement parts may be sourced. Repairs or replacement parts not authorized in advance by US Cellar Systems may void the terms and conditions contained in this warranty agreement.
US Cellar Systems is not responsible for labor to diagnose potential issues, remove possibly parts or to reinstall repaired/replacement parts. US Cellar Systems is not responsible for costs of supplies, labor or materials related to initial installation or subsequent maintenance or repairs.
Warranty does not cover damage due to such things as accident, misuse, abuse, neglect, acts of god, fires earthquakes, floods, high winds, government, war, riot or labor trouble, strikes, lockouts, delay of carrier, unauthorized repair, or any other cause beyond the control of US Cellar Systems, weather similar or dissimilar of the foregoing examples.
Purchaser understands and acknowledges that the goods sold are for wine cellars and or similar units that house wine or cigars. Purchaser assumes all risk of using these units, including risk of spoilage, humidity variations, leaks, fire water damage mold, mildew, dryness and similar perils that might occur.
UNLESS OTHERWISE PROVIDED BY APPLICABLE LAW, SELLER IS NOT RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, AND THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF; THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF THE FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY EXPRESSLY DISCLAIMED. SOME STATES DO NOT FOLLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR A WAIVER OF THE IMPLIED WARRANTIES OF FITNESS AND OR MERCHANTABILITY. SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.
