Split System VRM 4600 EC - Vertical Rack Mount

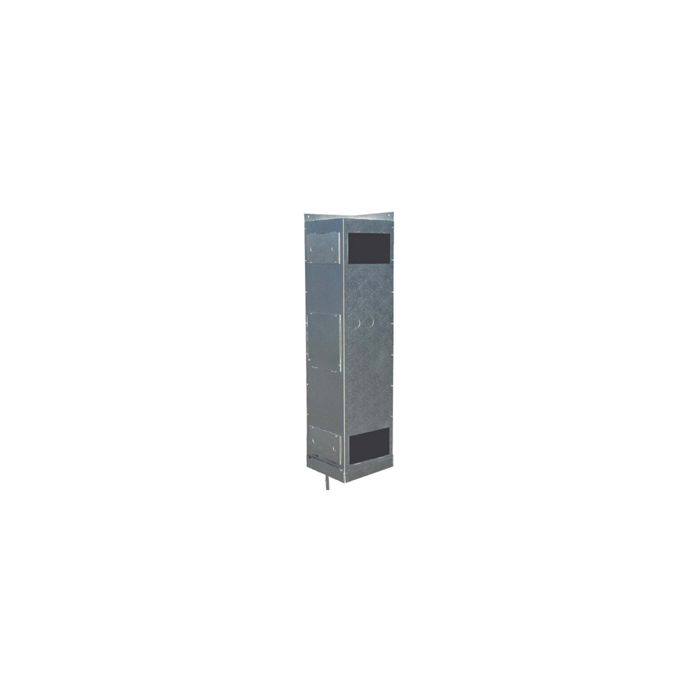

Split System VRM 4600 EC - Vertical Rack MountThe Split System VRM 4600 is designed to cool wine cellars up to 1,000 cubic feet in size. The Vertical Rack Mount (VRM) Systems are engineered to deliver refrigerated air to medium and high temperature spaces. VRM evaporators mount vertically and have multiple access panels to direct or re-direct the supply and return vents for easy adjustments during maintenance and installation. RM units can beplaced between ceiling joists, in a soffit, or directly onto a wall for maximum flexibility and ease with installation. All of the VRM Series units have pre-installed valves that eliminate the need for additional wiring from the thermostat. All units in the VRM Series of wine cellar cooling units are also factory wired for simple field installation which cuts down on time and hassle when setting up the unit in the desired location.
The VRM Series of wine cellar cooling systems is one of the most popular and versatile systems in the wine cellar cooling engineering community. The VRM 4600 unit has a cooling capacity of 4,600 BTU per hour. VRM evaporators are manufactured in standard capacities ranging from 2,600 to 6,600 BTU per hour and are used with R134a refrigerant.
We carry a wide variety of wall and ceiling mounted systems. If you need assistance in choosing a ceiling or wall mounted split system wine cooling unit, call us at 1-800-876-8789 for expert assistance.
- High-performance staggered coils with copper tubing mechanically expanded into aluminum fins
- Rust-proof and insulated aluminum housing
- Thermally protected permanently lubricated motor
- Automatic expansion valve (standard) ensures constant coil temperature to promote "Humidity Balance"
- Pump-down solenoid valve (standard) protects compressor in the event of leaks
- Pre-installed valves eliminate additional wiring to thermostat
- Pressure tested by the manufacturer to ensure quality
- Factory wired for simple field installation
- ETL certified
What's included in my shipment?
- Condensing Unit & Temperature Control. For cellars exceeding 2,000 cubic feet, please call our design team for custom options.
- Height 9.7 in
- Width 12 in
- Length 17 in
- AMPS Running 13.1 A
- Weight 55 lbs.
- Connection Suction (In.) 3/8 S
- Connection Liquid (In.) 1/4 F
- Height 45.5 in
- Width 11.375 in
- Length 11.375 in
- Capacity Up to 1000 cu. ft.
- BTU 4,600
- AMPS Running 0.77 A
- Electrical Requirements 115V
- Weight 50 lbs.
- Connection Suction (In.) 3/8 in
- Connection Liquid (In.) 3/8 in
- Drain Line (In.) 1/2 in
Line Set Between Coils
- Suction (In.) 3/8 in
- Liquid (In.) 1/4 in
- Easy Wire Harness Model # SSDC2WH25
- UL Listed Outdoor Cover
- Please allow 7-10 days before shipping.
- Installation: EPA Certified Refrigeration Technician Required.
Manuals & Guides
Split System VRM Series Manual
Split System Installation Guide
Part 1 - Installation Digital Controllers Wiring
Part 2 - Wiring Digital Controllers & Evaporator Coils
Part 3 - Digital Controller Set- Up
