Split System VRM 12000 EC TE - Vertical Rack Mount Twin Evaporators

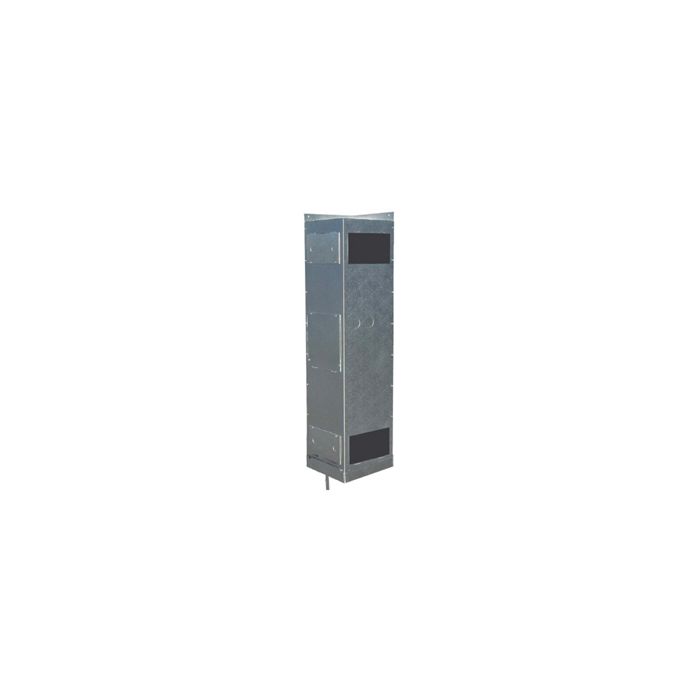

Split System VRM 12000 EC TE - Vertical Rack Mount Twin EvaporatorsThe Split System VRM 12000 TE is a Vertical Rack Mount (VRM) wine cooling unit with Twin Evaporators. This unit is designed to cool wine cellars up to 3,000 cubic feet in size. The Vertical Rack Mount (VRM) Series units are engineered to deliver refrigerated air to medium and high temperature spaces. VRM evaporators mount vertically and have multiple access panels to direct or re-direct the supply and return vents. VRM units can beplaced between ceiling joists, in a soffit, or directly onto a wall for maximum flexibility and ease with installation. All of the VRM Series units have pre-installed valves that eliminate the need for additional wiring from the thermostat. All units in the VRM Series of wine cellar cooling units are also factory wired for simple field installation which cuts down on time and hassle when setting up the unit in the desired location.
The VRM Series of wine cellar cooling systems is one of the most popular and versatile systems in the wine cellar cooling engineering community. The VRM 12000 TE unit has an exceptional cooling capacity of 12,000 BTU per hour. VRM evaporators are manufactured in standard capacities ranging from 2,600 to 6,600 BTU per hour and are used with R134a refrigerant.
We carry a wide variety of wall and ceiling mounted systems. If you need assistance in choosing a ceiling or wall mounted split system wine cooling unit, call us at 1-800-876-8789 for expert assistance.
- High-performance staggered coils with copper tubing mechanically expanded into aluminum fins
- Rust-proof and insulated aluminum housing
- Thermally protected permanently lubricated motor
- Automatic expansion valve (standard) ensures constant coil temperature to promote "Humidity Balance"
- Pump-down solenoid valve (standard) protects compressor in the event of leaks
- Pre-installed valves eliminate additional wiring to thermostat
- Pressure tested by the manufacturer to ensure quality
- Factory wired for simple field installation
- ETL certified
What's included in my shipment?
- Condensing Unit & Temperature Control. For cellars exceeding 2,000 cubic feet, please call our design team for custom options.
- Connection Suction (In.) 3/8 in
- Connection Liquid (In.) 5/8 in
- Drain Line (In.) 7/8 in
- Height 15.90 in
- Width 16.90 in
- Length 24 in
- AMPS Running 14.8 A
- Weight 130 lbs.
- Connection Suction (In.) 5/8 S
- Connection Liquid (In.) 1/4 S
- Height 51.5 in
- Width 11.188 in
- Length 11.378 in
- Capacity Up to 3000 cu. ft.
- BTU 12,000
- AMPS Running 0.77 A
- Electrical Requirements 115V
- Weight 59 lbs.
Line Set Between Coils
- Suction (In.) 5/8 in
- Liquid (In.) 3/8 in
- Easy Wire Harness Model # SSDC2WH25
- UL Listed Outdoor Cover
- Please allow 7-10 days before shipping.
- Installation: EPA Certified Refrigeration Technician Required.
Manuals & Guides
Split System VRM Series Manual
Split System Installation Guide
Part 1 - Installation Digital Controllers Wiring
Part 2 - Wiring Digital Controllers & Evaporator Coils
Part 3 - Digital Controller Set- Up
