Split System VHS 6600 EC - Vertical High Static Series

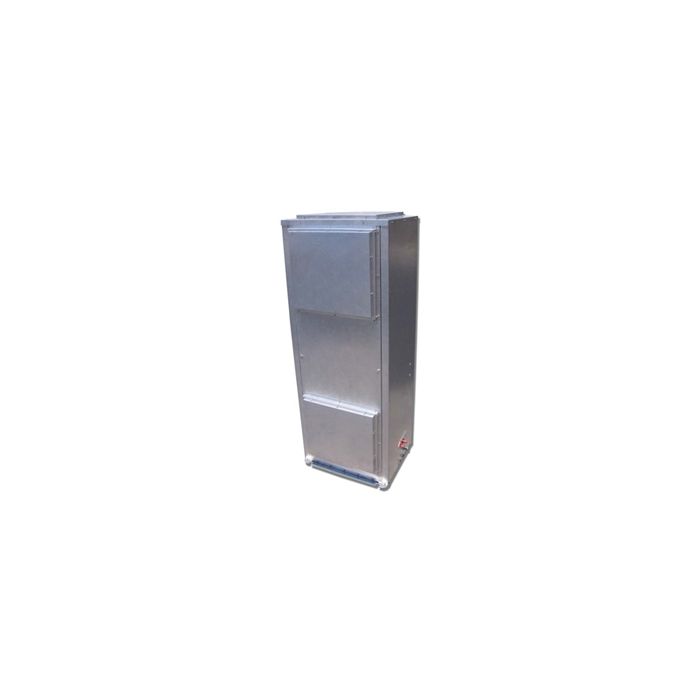

Split System VHS 6600 EC - Vertical High Static SeriesThe Split System VHS 6600 is a Vertical High Static (VHS) wine cellar cooling system and is designed to deliver refrigerated air to wine cellars up to 1500 cubic feet in size. VHS Systems are intended to deliver refrigerated air to medium to high temperature spaces. The powerful evaporators can be situated as far up to twenty five feet away from the climate controlled wine room. With this system, the cooled air is ducted back into the wine cellar, virtually eliminating any noise and inconvenience associated with evaporators which have to be placed in the wine cellar itself. This split system design also frees up storage space otherwise lost within the wine cellar.
The VHS Series wine cellar cooling units are factory-wired for simple field installation, saving you time, money and hassle once you're ready to install. These units come equipped with a thermally protected permanently lubricated motor, automatic expansion valve that ensures constant coil temperature and stable humidity, and a pump-down solenoid valve that protects the compressor from leaks as well as many other features to enhance the unit's performance. VHS Series Systems are to be used with an R134a refrigerant.
We carry a wide variety of wall and ceiling mounted systems. If you need assistance in choosing a ceiling or wall mounted split system wine cooling unit, call us at 1-800-876-8789 for expert assistance.
- Thermally protected permanently lubricated motor
- Automatic expansion valve (standard) ensures constant coil temperature to promote "Humidity Balance"
- Pump-down solenoid valve (standard) protects compressor in the event of leaks
- Pre-installed valves eliminate additional wiring to thermostat
- Pressure tested by the manufacturer to ensure quality
- ETL certified
- No noise produced in the wine cellar
- Occupies no space in the wine cellar
- Factory-wired for simple field installation
- Provides static pressure for duct runs up to 25 ft
- Insulated rust-proof aluminum housing
What's included in my shipment?
- Condensing Unit & Temperature Control. For cellars exceeding 2,000 cubic feet, please call our design team for custom options.
- Connection Suction (In.) 6/8 in
- Connection Liquid (In.) 3/8 in
- Drain Line (In.) 3/4 in
- Height 13.2 in
- Width 13.9 in
- Length 20.6 in
- AMPS Running 15.5 A
- Weight 83 lbs.
- Connection Suction (In.) 1/2 S
- Connection Liquid (In.) 1/4 F
- Height 30.125 in
- Width 16.25 in
- Length 20.875 in
- Capacity Up to 1500 cu. ft.
- BTU 6600
- AMPS Running 1.85 A
- Electrical Requirements 115V
- Weight 48 lbs.
Line Set Between Coils
- Suction (In.) 3/8 in
- Liquid (In.) 1/4 in
- Easy Wire Harness Model # SSDC2WH25
- UL Listed Outdoor Cover
- Please allow 7-10 days before shipping.
- Installation: EPA Certified Refrigeration Technician Required.
Manuals & Guides
Split System VHS Series Manual
Split System Installation Guide
Part 1 - Installation Digital Controllers Wiring
Part 2 - Wiring Digital Controllers & Evaporator Coils
Part 3 - Digital Controller Set- Up
