Split System VHS 15000 EC - Vertical High Static Series

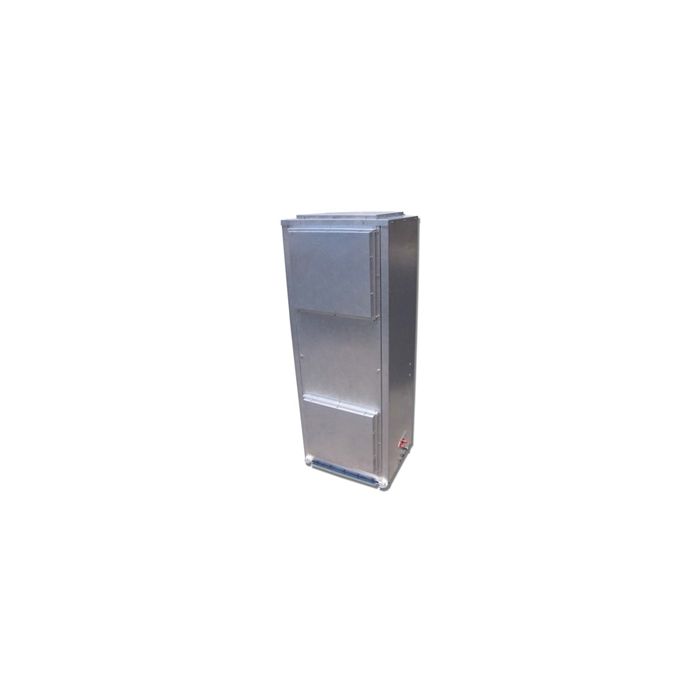

Split System VHS 15000 EC - Vertical High Static SeriesThe Split System VHS 15000 is a Vertical High Static (VHS) System and is designed to deliver refrigerated air to large wine cellars in a range of sizes. VHS Systems are powerful and can be situated as far up to twenty five feet away from the climate controlled wine room. The cooled air is ducted back into the wine cellar, virtually eliminating any noise and inconvenience associated with evaporators which have to be placed in the wine cellar. This split system design also frees up storage space otherwise lost within the wine cellar.
The VHS Series wine cellar cooling units are factory-wired for simple field installation, saving you time, money and hassle once you're ready to install. These units come equipped with a thermally protected permanently lubricated motor, automatic expansion valve that ensures constant coil temperature and stable humidity, and a pump-down solenoid valve that protects the compressor from leaks as well as many other features to enhance the unit's performance. VHS Series Systems are to be used with an R134a refrigerant.
We carry a wide variety of wall and ceiling mounted systems. If you need assistance in choosing a ceiling or wall mounted split system wine cooling unit, call us at 1-800-876-8789 for expert assistance.
- Thermally protected permanently lubricated motor
- Automatic expansion valve (standard) ensures constant coil temperature to promote "Humidity Balance"
- Pump-down solenoid valve (standard) protects compressor in the event of leaks
- Pre-installed valves eliminate additional wiring to thermostat
- Pressure tested by the manufacturer to ensure quality
- ETL certified
- No noise produced in the wine cellar
- Occupies no space in the wine cellar
- Factory-wired for simple field installation
- Provides static pressure for duct runs up to 25 ft
- Insulated rust-proof aluminum housing
What's included in my shipment?
- Condensing Unit & Temperature Control. For cellars exceeding 2,000 cubic feet, please call our design team for custom options.
- Connection Suction (In.) 3/8 in
- Connection Liquid (In.) 5/8 in
- Drain Line (In.) 7/8 in
- Height 16.6 in
- Width 18.3 in
- Length 24.1 in
- AMPS Running 21 A
- Weight 125 lbs.
- Connection Suction (In.) 7/8 S
- Connection Liquid (In.) 3/8 S
- Height 39.125 in
- Width 22.875 in
- Length 20.94 in
- Capacity Varies
- BTU 15,000
- AMPS Running 2.1 A
- Electrical Requirements 115V
- Weight 132 lbs.
Line Set Between Coils
- Suction (In.) 5/8 in
- Liquid (In.) 3/8 in
- Easy Wire Harness Model # SSDC2WH25
- UL Listed Outdoor Cover
- Please allow 7-10 days before shipping.
- Installation: EPA Certified Refrigeration Technician Required.
Manuals & Guides
Split System VHS Series Manual
Split System Installation Guide
Part 1 - Installation Digital Controllers Wiring
Part 2 - Wiring Digital Controllers & Evaporator Coils
Part 3 - Digital Controller Set- Up
