Split System RM 6600 EC TE (Twin Evaporators)
Split System RM 6600 EC TE (Twin Evaporators)The RM Rack Cooling System allows you to conceal the evaporator either above the ceiling or behind the walls. This model is great for larger cellars needing dual evaporators.

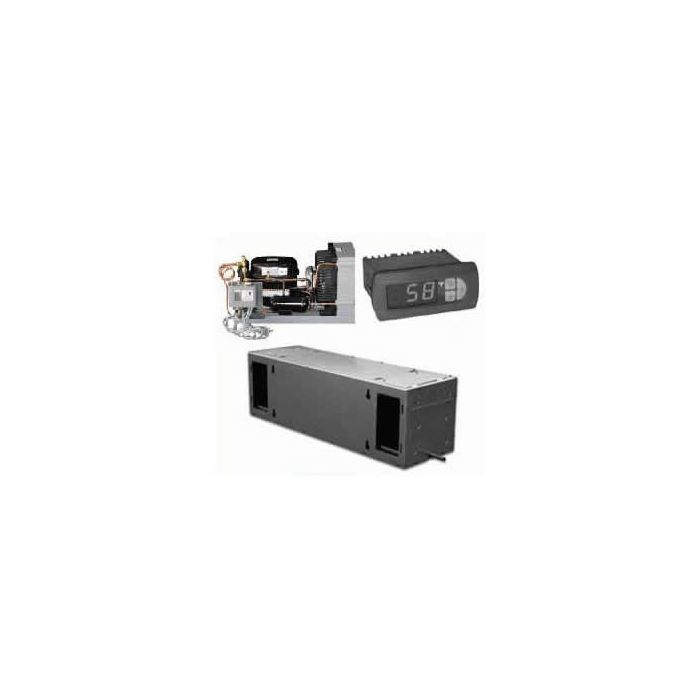

Includes: Evaporator, Condensing Unit & Temperature Control. For cellars exceeding 2,000 cubic feet, please call our design team for custom options.
*Please allow 7-10 days before shipping. Installation: EPA Certified Refrigeration Technician Required.
- Split System Cooling Efficiency
- Concealed Ceiling or Wall Mount
- Set it & Forget it Temperature Control
- High and Low alarm system
- Low maintenance
- Thermally protected motor and low noise fan blades
- High performance staggered coils
- Rust proof, all aluminum construction
- Factory wired for easy field installation
- Pressure tested to eliminate leaks
- ETL certified
What's included in my shipment?
- Condensing Unit & Temperature Control. For cellars exceeding 2,000 cubic feet, please call our design team for custom options.
- Connection Suction (In.) 3/8 in
- Connection Liquid (In.) 3/8 in
- Drain Line (In.) 1/2 in
- Height 13.2 in
- Width 13.9 in
- Length 20.6 in
- AMPS Running 15.5 A
- Weight 83 lbs.
- Connection Suction (In.) 1/2 S
- Connection Liquid (In.) 1/4 S
- Height 11.125 in
- Width 11.125 in
- Length 36 in
- Capacity Up to 2000 Cu. Ft.
- BTU 8,600
- AMPS Running 0.71 A
- Electrical Requirements 115V
- Weight 26 lbs.
Line Set Between Coils
- Suction (In.) 1/2 in
- Liquid (In.) 1/4 in
- Easy Wire Harness Model # SSDC2WH25
- UL Listed Outdoor Cover
- Please allow 7-10 days before shipping.
- Installation: EPA Certified Refrigeration Technician Required.
Manuals & Guides
Split System Installation Guide
Part 1 - Installation Digital Controllers Wiring
Part 2 - Wiring Digital Controllers & Evaporator Coils
Part 3 - Digital Controller Set- Up
