Split System LPQ 4600 TE

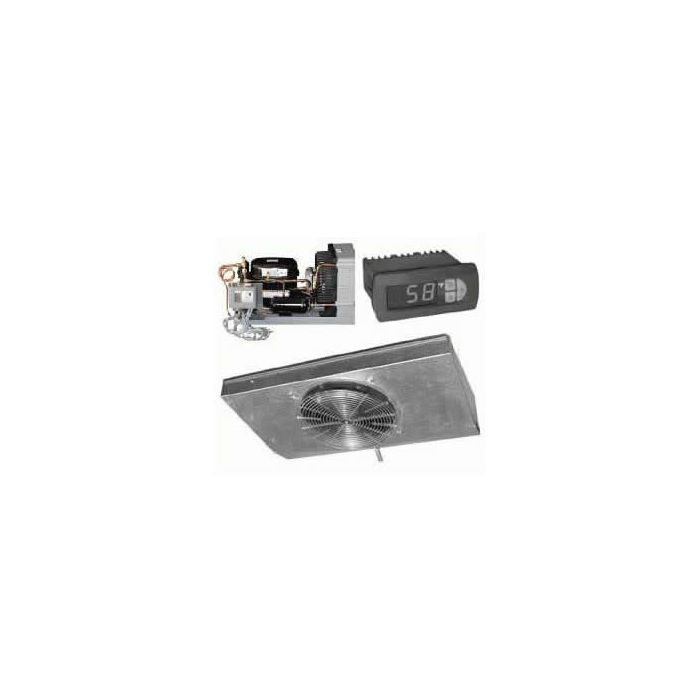

Split System LPQ 4600 TEThe Low-Profile Quiet (LPQ) Wine Cellar Cooler is specifically built for efficiency and dependability and is a perfect choice for cellars needing ceiling mounted units. LP Systems are easy to install, require very low maintenance and will provide
- Heavy gauge Aluminum cabinet is textured and simple to clean
- Drain pan is easily accessible
- Fan guards and blades are molded to reduce noise
- Factory installed Thermal expansion valve
- Factory installed Pump-down solenoid valve protects compressor
- Factory installed valves eliminate additional control wiring to thermostat
- ETL certified
What's included in my shipment?
- Condensing Unit & Temperature Control. For cellars exceeding 2,000 cubic feet, please call our design team for custom options.
- Connection Suction (In.) 1/2 in
- Connection Liquid (In.) 3/8 in
- Drain Line (In.) 1/2 in
- Height 9.7 in
- Width 12 in
- Length 17 in
- AMPS Running 13.1 A
- Weight 55 lbs.
- Connection Suction (In.) 3/8 S
- Connection Liquid (In.) 1/4 F
After 'T' Suction
- Suction (In.) 1/2 in
- Liquid (In.) 3/8 in
- Height 4.75 in
- Width 14.5 in
- Length 24.25 in
- Capacity Up to 1000 Cu. Ft.
- BTU 4,600
- AMPS Running 0.4 A
- Electrical Requirements 115V
- Weight 22 lbs.
Line Set Between Coils
- Suction (In.) 3/8 in
- Liquid (In.) 1/4 in
- Easy Wire Harness Model # SSDC2WH25
- UL Listed Outdoor Cover
- Please allow 7-10 days before shipping.
- Installation: EPA Certified Refrigeration Technician Required.
Manuals & Guides
Split System LPQ Series Manual - PDF
Split System Installation Guide
Part 1 - Installation Digital Controllers Wiring
Part 2 - Wiring Digital Controllers & Evaporator Coils
Part 3 - Digital Controller Set- Up
