CellarPro Ceiling Mount Recessed 3000Scmr-EC (P/N 32032). NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro engineered the Ceiling Mount Mini-Split 3000Scmr-EC cooling system to provide maximum cooling power and adjustable humidity control with a ceiling-mounted evaporator that can be recessed in the ceiling and therefore hidden from view. The condensing unit can be configured for indoor or exterior installations, and the evaporator includes a variable-speed fan with a low setting for quieter operation and a high setting for maximum power.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The condensing unit must be installed outside the cellar in a location that provides ample space and access to fresh air.

Specifications

Brand: CellarPro

UPC: 077757011252

Size:
Condensing Unit Dimensions:
- 42 lbs
- 13 1/2w x 18 7/8d x 9 1/8h

Evaporator Unit Dimensions:
- 65 lbs
- 35 3/4w x 14 1/4d x 12 7/8h

Shipping Weight: 161 lbs

Power/Rating:
115V AC / 60 Hz

System Amps:
- Startup: 28.2 Amps
- Common dedicated 15-amp circuit is required to power the unit.
- Unit Amp Rating: 5.7 Amps (high fan speed)
- Total Watts: 459 (med fan speed)

BTUH @ 55F / Evaporator Decibels
- Low Fan Speed: 2253 BTUH / 51 dbA
- Medium Fan Speed: 2605 BTUH / 55 dbA
- High Fan Speed: 2720 / 63 dbA
- 1/4 Ton Nominal

Condensing Unit Decibels
- Indoor: 64
- Outdoor: 62

Click on one of the following links for more information:

• Spec Sheet
• Sizing Table
• Monthly Operating Cost
• Cut Sheets
• Framing Diagram
• Line Sizing Chart
• Configuration Options
• Wiring Diagram - Dual Power/ Valve Control
• Wiring Diagram - Single Power / Electronic Control
• Refrigerant Piping Diagram
• Refrigerant Piping Handbook
• Owner's Manual
• Installation Checklist

Features

• Now with energy-efficient EC Fans on the cold side, save $72.04 in annual energy costs vs AC fans (assumes 75% runtime and $0.15/kWh)
• This unit is designed to separate the heat and noise from the condensing unit from interior living spaces, and can be configured to operate indoors or outdoors in extreme temperature conditions ranging from -20 to 110F.
• Our Evaporators are built with high-output centrifugal fans which include variable speed settings for your choice of maximum cooling power at the high fan speed, or quieter operation (54 decibels) at the low fan speed.
• Adjustable humidity control combines a high-output compressor with flexible fan cycles to maintain a recommended level of moisture inside your cellar.
• Extra-large coils generate maximum cooling power inside the cellar.
• Excess condensate is managed through an internal integrated condensate pump and a 1/4" drain line that exits from a choice of knockouts in the evaporator. The pump has automatic overflow protection.
• Commercial-grade Electrofin coating protects the evaporator coils from leaks and corrosion.
• Remote LED display panel and digital programmable controls includes 20-feet of wiring and can be mounted inside or outside the cellar.
• Quick-chill mode, and auto-defrost cycle provide convenient solutions to common cellar needs.
• Temperature set point range is 47F to 62F when the cooling unit is properly sized.
• Unit operates with minimal vibrations and less noise than comparable units from competitors.
• Audible and visual alarms and maintenance-needed indicator protect the cooling unit and the wine cellar.
• Multiple knockouts and access points ensure easy installation.
• Common dedicated 15-amp circuit is required to power the unit.
• Factory-installed Expansion Valve and Liquid Line Solenoid Valve (optional) ensure maximum operating precision and range.
• Refrigerant access valve provides access to the internal components for servicing and repair.
• Sight Glass and Liquid Line Filter/Drier are included for easy installation and maintenance.
• Oversized Receiver allows for long line sets up to 100 equivalent feet and up to 30 vertical feet.
• Auto-reset high-pressure switch protects the system by interrupting power to the compressor when system pressure is too high.
• Evaporator and Condensing Unit are factory-pressurized and shipped with dry nitrogen to ensure leak-free installation.
• CellarPro's 2-Year/5-Year Warranty, the most thorough in the industry, protects the unit against manufacturing defects.
• An optional Extended Warranty (P/N 31489) is available for additional protection.
• ETL Tested and Certified to rigorous UL Standards for safety.

Configuration

• CellarPro Split 3000Scmr-EC units are designed to be installed with the evaporator recessed in the ceiling above the cellar, and the condensing unit in a remote location.

• Our Split refrigeration systems offer a choice of wiring:

1. The Condensing unit can be electronically controlled by and wired to the Evaporator (single power source on the Evaporator side). A compressor heater is included to prevent off-cycle refrigerant migration to the compressor, and allows the Condensing unit to be used in temperatures down to 20F, or down to -20F with the addition of our fan cycling switch. This configuration requires a 15-amp dedicated circuit breaker for 3000Scmr and 4000Scmr systems, and a 25-amp dedicated circuit breaker for 6000Scmr and 8000Scmr-EC systems.
2. The Condensing unit can be controlled by a Solenoid valve (dual power source, one each to the primary Evaporator and Condensing units.) A compressor heater is included to prevent off-cycle refrigerant migration to the compressor, and allows the Condensing unit to be used in temperatures down to 20F. We do not recommend using this configuration when the condensing unit will be exposed to temperatures below 20F. This configuration requires the primary evaporator to be wired to a 15-amp circuit breaker, and the condensing unit to be wired to a dedicated 15-amp circuit breaker for 3000Scmr and 4000Scmr systems, a dedicated 20-amp circuit breaker for 6000Scmr systems, and a dedicated 25-amp circuit breaker for 8000Scmr-EC systems

• Recessed Ceiling Mount evaporators can be installed in a choice of configurations:

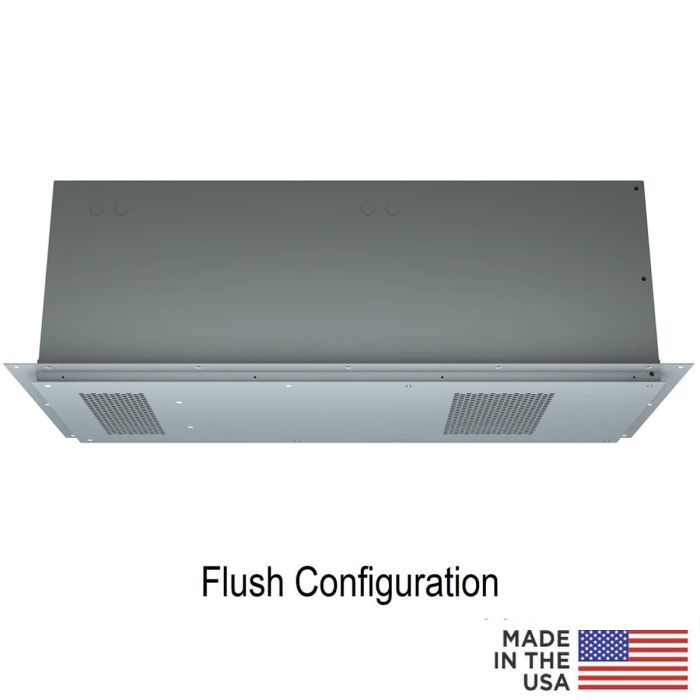

1. Flush To Ceiling includes an oversized bottom cover/grill that is designed to sit flush against the sheet rock.
2. Recessed | Protruded includes a bottom cover/grill that is the same size as the evaporator body and therefore can be recessed in or protruded below the ceiling.
• The condensing unit requires 12 inches of unobstructed space in front of the coils, and requires approx. 600-700 CFM of ventilation when installed in a confined space.
• For outdoor installations, we offer an outdoor hood to protect the condensing unit from weather.
• The evaporators should never be exposed to temperatures below 32F.
• Access to the bottom of each evaporator is required for installation.
• All split systems must be installed and charged on site by a qualified HVAC professional. Line-set equivalent feet must be calculated in accordance with ASHRAE guidelines; refer to our Line Sizing Chart for more information.
• A CellarPro cooling unit must always be used in the upright position, and should never be operated on its side or upside down.
• We ship these units strapped to a pallet via common carrier with curbside delivery. Inside delivery is available for an additional charge.
• To activate your warranty, you must complete and return our Installation Checklist.

Additional Info

2720 SENSIBLE BTUH @ 55F.
CellarPro's 3000Scmr-EC Recessed Ceiling Mount split cooling system features an evaporator (1/3 Ton Nominal) that is designed to be recessed in the ceiling. This unit is suitable for wine cellars up to 600* cubic feet in both commercial and residential wine cellars.

Performance testing shows that this unit maintains optimal cellar temperature and humidity conditions in extreme conditions up to 110F more effectively than similar units from competing brands. 3000Scmr-EC units use energy-efficient EC fans in the evaporator and are significantly quieter than comparable units from other manufacturers.

All ceiling-mount units include our remote display with 20-feet of low-voltage wiring (additional wiring available upon request) and an integrated condensate pump as standard equipment. Visit our Learning Center for data tables, performance charts and product comparisons among different brands.

*The cellar size assumes that the cellar is constructed with a proper vapor barrier, insulation of R19 or better in all walls and ceiling (ie no glass or uninsulated concrete), a setpoint of 55F inside the cellar and ambient temperatures up to 85F outside the cellar.

Our cooling units are designed to be used in properly-constructed wine cellars that are adequately insulated, airtight and sealed with a vapor barrier. In improperly-constructed cellars, the cooling unit will create excess condensation, leading to damage and premature failure of your cooling unit (not covered by warranty).

Please note: If the condensing unit will be installed outdoors, you must use our OEM Outdoor Hood to comply with our warranty. Even with our outdoor hood, our units were not designed for, and our warranty does not cover damage from, marine exposure (within 5 miles of the ocean). In these environments, you will need an applied coating, such as Insitu®, to protect outdoor components against corrosion that is common in coastal regions.

** PROP 65 WARNING **

This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Warranty

Warranty Resources:
Warranty Overview
Limited Warranty 2 Years (Entire System).
To activate your warranty, you must complete and return our Split Installation Checklist.

The optional CellarPro Split / AH Series Extended Warranty (sold separately) is designed to augment our standard warranty. Our extended warranty increases and enhances coverage as follows:

• Increases the warranty period from 2 to 5 years from the date of purchase
• Covers all internal functioning parts supplied by CellarPro
• Pays labor for one (1) technician and parts which fail due to a mechanical or electrical breakdown. A mechanical or electrical breakdown is defined as the inability of a covered part to perform a routine function, when properly cleaned and serviced. Replacement of parts, if not supplied by CellarPro, must be of like kind and quality. A mechanical or electrical breakdown does not include a reduction in operating efficiency, or failure due to incorrect installation, misuse, abuse, or neglect.
• Diagnostic charges are limited to industry's usual and customary rates, not to exceed one hour.
• Installing/servicing contractor agrees to provide labor for ninety (90) days from the date of installation or repair, along with any and all parts' warranty coverage provided by the parts' manufacturer.

Please note the following terms and conditions:

• A deductible of $99 will be charged per incident
• WARRANTY WILL NOT BE ACTIVATED UNTIL WE RECEIVE THE COMPLETED CHECKLIST AND INSTALLATION ISSUES (IF ANY) HAVE BEEN RESOLVED. If the unit is damaged because of improper installation, repair services will be provided on a time and materials basis.
• Owner/purchaser agrees to have the equipment installed and serviced by a qualified, properly licensed, technician. Owner/purchaser agrees to follow the recommended maintenance procedures outlined in the installation instructions. We recommend that you have a service agreement with your installer setup for a bi-yearly inspection and maintenance of your system. You must keep maintenance records validated by the servicing company, or keep receipts and work orders indicating dates and service provided. These records must be provided upon request by CellarPro.
• Scratches, blemishes and other cosmetic damage caused during transit and/or normal wear-and-tear are not covered by the extended warranty
• The extended warranty is available exclusively to residential customers in the continental U.S. for use in non-commercial applications
• The extended warranty is not available for 220V models
• The extended warranty does not cover accessories
• The extended warranty is not transferable
