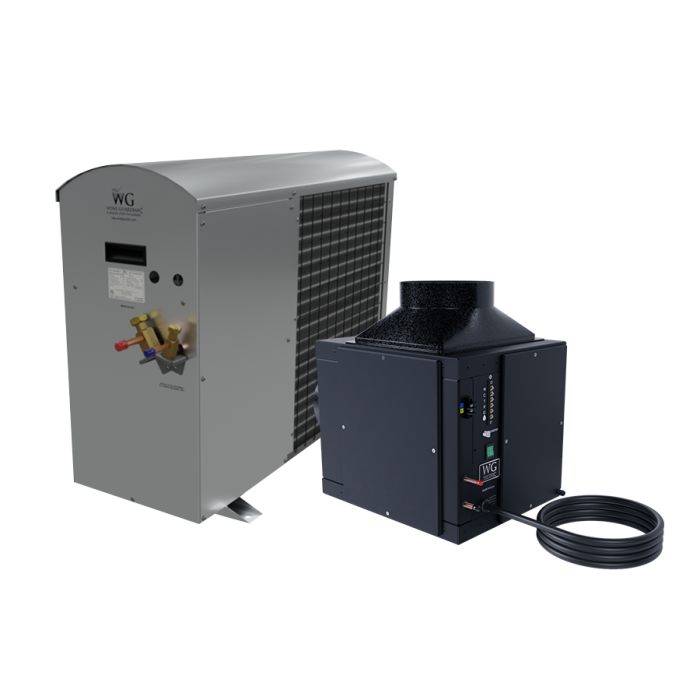

SP88 Wine Guardian Pro Low Temperature Ductable Split HVAC System 60Hz
The SP88 Pro low temperature ductable split HVAC system for midsize to large specialty storage applications such as fur storage, wine rooms, and other niche environments is a perfectly-paired condensing unit and evaporator section that comes standard with features such as electric heat, X-treme low ambient protection and high ambient protection. This wine cooling system has a max capacity of 10,760 BTU/H. The SP88 is compatible with modern smart thermostats and features enhanced refrigeration controls.
- Height: 26 in
- Width: 34 in
- Depth: 12 in body / 16 in base
- Weight: 100 lbs
- Capacity: 9,600 BTUH
- Electrical Requirements: 230 Hz
- Height: 14.25 in
- Width: 16.75 in
- Depth: 22 in
- Weight: 37 lbs
Wine Guardian Pro ducted units are the most versatile specialty cooling systems on the market. Applications include wine cellars, art or document preservation, instrument or fur storage, computer closets, niche environments, and more; these units can be used in nearly any application.
- 3,760-15,680 BTU/H capacity
- 24-volt electronics for use with today’s smart thermostats and building management systems
- High- and low-pressure safety switches
- Refrigerant sight glass, filter drier, and access ports
- Duct collar connections
- Low ambient protection
- High ambient protection (on limited models)
- 5-year compressor warranty
- Utility piping in one easily accessible location
- Multiple evaporator and condenser outlet locations (Any of three sides)
- Easily mountable in floor, ceiling, or wall applications
- Duct collars on supply & return and intake & exhaust
- Aluminum body and all-aluminum evaporator coils (fins & tubes) are corrosion-resistant
- Standard high static pressure fan for extended lengths of ductwork
- Completely serviceable in the field
- Bolt-on humidifier
- Electric heat
- Water-cooled or air-cooled
Make sure your expected duct runs will be compatible with your pro ducted system by using our basic ductwork calculator. Aluminum body and all-aluminum evaporator coils (fins & tubes) are corrosion-resistant
Manuals & Guides
Wine Guardian Ducted, Split and Humidifier Warranty
Wine Guardian warrants, to the original buyer, its goods and all parts thereof to be free from defects in material and workmanship for a period of two (2) years from the date of invoicing assuming NORMAL USE AND SERVICE.
Wine Guardian liability shall be limited to the repair or replacement (at its option) of any part, which, at our sole discretion, is determined to be defective. The purchaser shall pay all transportation costs. Additionally, if a malfunction occurs within the first year from the date of invoice, Wine Guardian will reimburse the reasonable cost of labor required for the repair or replacement provided authorization is obtained from one of our authorized representatives prior to incurring any labor charges.
LIMITATIONS OF LIABILITY
THESE WARRANTIES ARE MADE IN LIEU OFF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE AND IN LIEU OF ANY OTHER OBLIGATION OR LIABILITY, INCLUDING LIABILITY FOR ANY INCIDENTAL OR CONSQUENTIAL DAMAGES. Wine Guardian will not be responsible for any costs or liabilities whatsoever resulting from improper installation or service of its equipment. In the event that Wine Guardian or its distributors are found liable for damage based on any defect or nonconformity in the products, their total liability for each defective product shall not exceed the purchase price of such defective products. No person or representative is authorized to change these warranties or assume any other obligations or liabilities for Wine Guardian in connection with the sale of its systems.
Purchaser agrees to indemnify, hold harmless and defend seller and its officers, directors, agents and employees from and against any and all claims, liabilities, costs and expenses arising out of or related to Purchaser's use of the goods, or in any way involving injury to person or property or accident occasioned by the goods sold by Wine Guardian to Purchaser.
FOREIGN GOVERNMENT AND INDIAN NATIONS
If Purchaser is a foreign government or an Indian nation, Purchaser hereby expressly waives its defense of sovereign immunity in the event of a dispute between Purchaser and Wine Guardian regarding this invoice and Purchaser expressly acquiesces to the jurisdiction of the federal and state courts of the United States.
If one or more of the provisions contained in this contract shall for any reason be held to be invalid, illegal or unenforceable in any respect, such invalidity, illegality or unenforceability shall not affect any provision of this contract, but this contract shall be construed as if such invalid, illegal or unenforceable provision had never been contained.
If a defect covered by the Warranty occurs, contact Wine Guardian for authorization to proceed with corrective action. Do not return any parts or incur any charges for which you expect to be reimbursed under this Warranty without receiving this authorization. If parts are replaced under this Warranty, the defective parts must be returned prepaid within 30 days. This warranty shall be null and void in its entirety if the Serial Number on the air conditioner or compressor is altered, removed or defaced.
