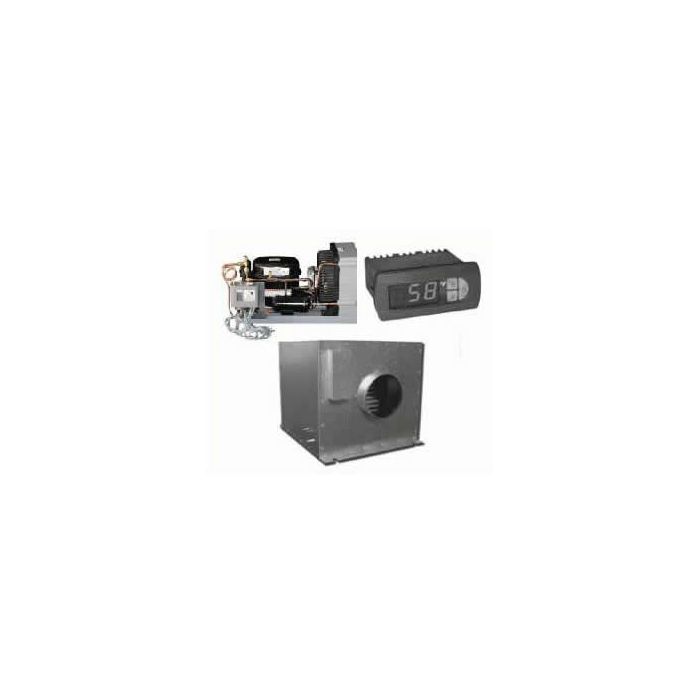

Split System HS 12000 EC High Static
Split System HS 12000 EC High Static
The High Static (HS) Systems are designed to provide refrigerated air to medium-high temperature spaces. HS evaporators are powerful enough to be installed as far as 25 feet away from the refrigerated room. The chilled air is ducted back into the room, eliminating noise or the inconvenience of an in-room evaporator, which frees up valuable space.
HS evaporators are available in capacities from 1,800 to 20,000 BTU per hour and are used with an R134a refrigerant.
- Remote location produces no noise in the wine cellar
- Occupies no space in the wine cellar
- Provides static pressure for duct runs up to a total of 50'
- Rust-proof and insulated aluminum housing
- Permanently lubricated motor is thermally protected
- Factory installed Automatic Expansion valve ensures constant coil temperature to achieve "Humidity Balance"
- Factory installed Pump-down solenoid valve protects compressor
- No additional control wiring required to thermostat
- All units are pressure tested by the manufacturer to ensure quality
- Factory wired for easy field installation
- ETL certified
- Connection Suction (In.) 0.63 in
- Connection Liquid (In.) 0.38 in
- Drain Line (In.) 0.88 in
- Height 19 in
- Width 34 in
- Length 25.2 in
- AMPS Running 16.8 A
- Weight 191 lbs.
- Connection Suction (In.) 7/8 S
- Connection Liquid (In.) 3/8 S
- Height 22.38 in
- Width 22.88 in
- Length 27.13 in
- Capacity 3500 cu. ft.
- BTU 12,000
- AMPS Running 2.1 A
- Electrical Requirements 115V AC / 60 Hz
- Weight 66 lbs.
Line Set Between Coils
- Suction (In.) 3/8 in
- Liquid (In.) 1/2 in
- Easy Wire Harness Model # SSDC2WH25
- UL Listed Outdoor Cover
- Condensing Unit & Temperature Control.
Manuals & Guides
Split System Installation Guide
Part 1 - Installation Digital Controllers Wiring
Part 2 - Wiring Digital Controllers & Evaporator Coils
Part 3 - Digital Controller Set- Up
Seller warrants that the goods will be free of defects in materials and workmanship as follows: All cooling unit parts are covered for a period of one (1) year from date of sale.
Purchaser's exclusive remedy is limited, at Seller's option, to repair or replace defective parts with either new or factory reconditioned parts. Unless otherwise provided by applicable law. Purchaser is responsible for shipping the unit to repair facility designated by US Cellar Systems. US Cellar Systems will pay return shipping at regular ground rates for units repaired under warranty. At the sole discretion and approval of the seller local replacement parts may be sourced. Repairs or replacement parts not authorized in advance by US Cellar Systems may void the terms and conditions contained in this warranty agreement.
US Cellar Systems is not responsible for labor to diagnose potential issues, remove possibly parts or to reinstall repaired/replacement parts. US Cellar Systems is not responsible for costs of supplies, labor or materials related to initial installation or subsequent maintenance or repairs.
Warranty does not cover damage due to such things as accident, misuse, abuse, neglect, acts of god, fires earthquakes, floods, high winds, government, war, riot or labor trouble, strikes, lockouts, delay of carrier, unauthorized repair, or any other cause beyond the control of US Cellar Systems, weather similar or dissimilar of the foregoing examples.
Purchaser understands and acknowledges that the goods sold are for wine cellars and or similar units that house wine or cigars. Purchaser assumes all risk of using these units, including risk of spoilage, humidity variations, leaks, fire water damage mold, mildew, dryness and similar perils that might occur.
UNLESS OTHERWISE PROVIDED BY APPLICABLE LAW, SELLER IS NOT RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, AND THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF; THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF THE FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY EXPRESSLY DISCLAIMED. SOME STATES DO NOT FOLLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR A WAIVER OF THE IMPLIED WARRANTIES OF FITNESS AND OR MERCHANTABILITY. SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.
