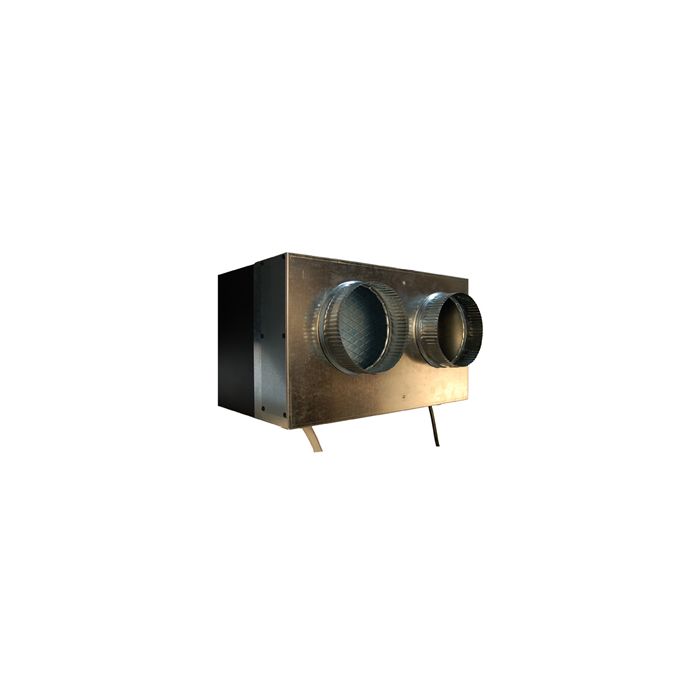

CellarPro Retrofit Rear Duct Hood with Fan
CellarPro Retrofit Rear Duct Hood with Fan
RETROFIT Hood allows CellarPro 1800 Series wine cooling units to be ducted up to 100 equivalent feet (50 feet per duct). Order this kit if your 1800 wine cooling unit already has been shipped.
This RETROFIT hood should be used if you already have your wine cooling unit or if it has already shipped. The retrofit kit includes:
- 6-inch inline fan (120 CFM)
- Galvanized metal duct hood slides over the rear of the cooling unit and baffles the air intake and exhaust
- RETROFIT WIRE HARNESS + 8-foot power line provides switched power for the inline fan to match the on/off cycle of the wine cooling unit
Specifications
Shipping Dimensions
- Height 8 in
- Width 16 in
- Length 24 in
Product Specifications
- Height 10 1/8 in
- Width 18 1/8 in
- Depth 6 3/4 in
- Electrical Requirements 115V, 60 Hz, 0.6 amps (Inline Fan)
- Weight 10 lbs.
Features
- RETROFIT Rear Duct Kit for CellarPro 1800 Cooling Units
- Inline fan (3000RPM, 120 CFM) has a permanently lubricated, impedance protected motor
- Heavy gauge plated steel brackets
- Switched power to match the cooling unit
- Designed to fit over the rear of all CellarPro 1800 wine cooling units
- Includes an easy-access panel to replace air filters (sold separately)
- Grommet openings for the drain line and power cord
