CellarPro Air Handler AH18Sx Split Outdoor #34209

CellarPro Air Handler AH18Sx Split Outdoor #34209

15,500 BTUH @ 55F.
CellarPro's AH18Sx split cooling system (1.5 Ton Nominal) is suitable for wine cellars up to 7000 cubic feet* in both commercial and residential wine cellars. The evaporator module features a powerful centrifugal fan that can handle ducting up to 0.30"wg external static pressure (equivalent to 14" diameter using R-6 insulated flex ducting, or 153 sq. inches area using R-6 insulated hard ducting.)

Designed for the condensing unit to be installed indoors or outdoors, the air-cooled condensing unit can handle ambient temperatures ranging from -30F to 110F. Please note that the condensing unit cannot be ducted and requires sufficient clearance for proper airflow - refer to the Owner's Manual for more information.

*7000 cubic feet size assumes that the cellar is constructed with insulation of R19 or better in all walls and ceiling (ie no glass or uninsulated concrete), a setpoint of 55F inside the cellar and ambient temperatures up to 85F outside the cellar. Ducting will add additional load and must be considered in the sizing calculation. Request a free thermal load calculation.

Specifications

• Capacity:15500 BTUH @ 55F
• Sizing:Click here to view sizing table
• Size:41 3/8w x 36 5/8d x 22 3/8h (in) (Evap)
• Weight:414 lb
• Power/Rating:Power:
  - 208V/1PH/60HZ or 230V/1PH/60HZ ( must be specified when ordering) with dual power supplies:


• 15 amp circuit for the evaporator module
• 40 amp dedicated circuit for the condensing unit.

Condensing Unit Dimensions:
- 219 lbs (no humidifier)
- 16 5/8w x 40 1/2d x 33 1/8h

Evaporator Unit Dimensions:
- 156 lbs
- Add 5 lbs for Integrated Heater and 20lbs for Integrated Humidifier
- 41 3/8w x 36 5/8d x 22 3/8h

1.5 Tons Nominal
15,500 BTUH @ 55F

Evaporator Decibels
- Ducted: 67 dbA
- Non-Ducted: 78 dbA

Condensing Unit Decibels
- 61 dbA


Click on one of the following links for more information:

• Spec Sheet
• Sizing Table
• Monthly Operating Cost
• Evaporator/Condensing Unit Cut Sheet
• Line Sizing Chart
• Owner's Manual
• Product Brochure
• Configuration Options
• Installation Checklist

Features

CellarPro AH18Sx Air Handler Cooling System (P/N 34209). Our Split Air Handler is rated for exterior usage and designed for cellars up to 7000* cubic feet, providing ducted refrigeration specifically designed for wine cellars.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space - it must come from space outside the cellar.

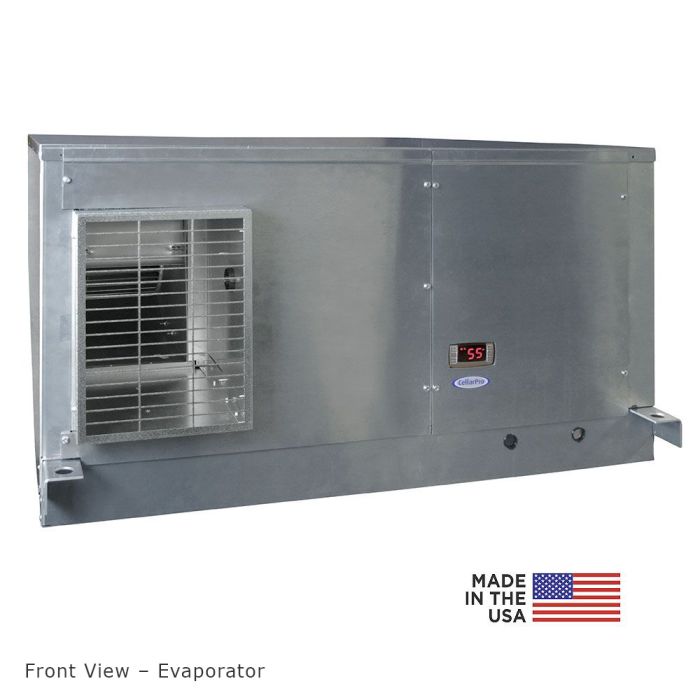

• Evaporator features an aluminum body for light weight, corrosion resistance and aesthetics
• Quick-release hardware simplifies internal access
• Scroll compressor provides high-reliability, high efficiency and low noise
• Insulated evaporator compartment provides maximum thermal efficiency.
• A-frame evaporator construction increases cooling capacity and reduces power consumption.
• Speed-optimized ECM blower motor in a draw-thru configuration provides even air distribution across the evaporator coils with 1300 CFM
• Using 14" diameter R-6 insulated flex ducting, the Evaporator can be ducted up to 100 equivalent feet (50 equivalent feet per duct)
• Using R-6 insulated hard ducting, the Evaporator can be ducted with maximum external static pressure of 0.3"wg and minimum cross sectional area of 153 sq inches.
• Commercial-grade Electrofin coating protects the evaporator coils from leaks and corrosion.
• Stainless steel condensate pan and condensate safety switch protects against condensate overflow
• Low RPM minimizes air noise and motor HP consumption
• Evaporator blower assembly is mounted to an internal chamber to further reduce noise
• Includes Class 2, 24VAC control circuit with all necessary contactors, fuses and/or circuit breakers
• Compatible with WiFi-enabled 24V Thermostats (sold separately) to control and display cellar temperature
• Optional integrated humidity module includes a Digital IAQ Humidistat that allows the cellar humidity to be set from 5% to 70% in 5% increments
• Optional integrated heating system provides heating instead of cooling when cellar temperatures drop below the setpoint.
• Air cooled condensing unit enclosure suitable for indoor or outdoor installations
• The Evaporator and Condensing Unit are factory-pressurized and shipped with dry nitrogen to ensure leak-free installation.
• CellarPro's 2-Year/5-Year Warranty, the most thorough in the industry, provides 2 years' coverage on parts (labor is not included) and 5 years on the compressor .
• An optional Extended Warranty (P/N 31489) is available for additional protection.
• ETL Tested and Certified to rigorous UL Standards for safety.

Upgrades

Cold Temperature

• Compressor Heater: protects the unit when installed in environments that drop down to 20F - Included as standard equipment.
• Fan Cycling Switch: supports the unit in temperatures below 20F and as low as -20F when configured with Electronic Control and combined with our compressor heater. Included as standard equipment

Remote Thermostats, Displays & Probes

• Networkable Thermostat Upgrade: Included as standard equipment allowing connection of your cooling unit to a networkable, Wi-Fi enabled thermostat (sold separately, Ecobee SmartThermostat Pro #31453). Some limitations apply - read the networkable thermostat description for more information.

Heating & Humidification

• Integrated Heater #32034: adds 3000 watts of heat through the cooling system when the cellar is in an unheated environment and will be exposed to temperatures below desired wine storage temperatures.
• Integrated Humidifier #32035: provides humidification with digital control inside the cellar when attached to an external water line.

Condensate Pump

• Internal Condensate Pump #34198: Internal condensate pump is factory-installed and includes 25ft of 1/4"ID PVC drain line.

DID YOU KNOW?
Nobody protects your wine cellar better than CellarPro Cooling Systems! In the event your cooling unit fails and the failed components are covered by our warranty, we'll send a replacement cooling unit to you per the terms of our Replacement Unit Program

CellarPro Replacement Unit Program
If your CellarPro cooling unit fails and the parts that failed are still covered by warranty, we'll send a replacement cooling unit to you, as follows:

1. Your cooling unit must be registered at CellarPro
2. Your cooling unit must have been properly sized, installed and maintained
3. Your cooling unit may not have been permanently modified, damaged or disfigured

Please note:

• Replacement units are factory-refurbished cooling units with a similar build date as your original unit
• You are responsible for the shipping cost to send the replacement unit to you and return the original unit to us, and the cost (if any) to remove the original unit and install the replacement unit
• In order to send a replacement unit, we require a deposit, which will be refunded minus shipping costs upon the return and pending the inspection of the original unit
• If the original unit failed due to improper installation or use, the failure is not covered by warranty and we will deduct the cost of the repairs from the refund of your deposit

Additional Info

Configurations

• Cold side exhaust is on the front, and intake is on the right side.
• The system requires either 208V/1PH/60HZ or 230V/1PH/60HZ dual power supplies, with a 15 amp circuit for the evaporator module and a 50 amp dedicated circuit for the condensing unit. Either 208V or 230V must be specified when ordering the system.
• 24VAC control wiring is required between the main temperature controller and the evaporator. No communication wiring is required between the evaporator and the condensing unit.
• The system includes a refrigerant pump-down solenoid valve to prevent liquid slugging.
• Units are evacuated and charged with dry nitrogen.
• The Evaporator operating range is 45F to 62F cellar temperature without the Integrated Humidifier, and 51F.to 62F with the Integrated Humidifier
• An optional integrated humidification system and an optional heating system are available for an additional cost. These options must be factory-installed and require additional power. Please consult the Owners Manual for specific power requirements.
• The evaporator should never be exposed to temperatures below 32F.
• The unit includes a mounted defrost controller that manages the defrost cycle, which is time initiated, temperature terminated with a factory default of 1 hour.
• Access to the left and right sides of the evaporator unit is required for installation and service.
• Split systems must be installed and charged on-site by qualified HVAC/R professionals. Line-set equivalent feet must be calculated in accordance with ASHRAE guidelines; refer to our Line Sizing Chart for more information.
• CellarPro cooling units must always be used in the upright position and should never be operated on its side or upside down. These units are shipped strapped to a pallet via a common carrier with curbside delivery. Inside delivery is available for an additional charge.
• To activate your warranty, you must complete and return our Installation Checklist.
