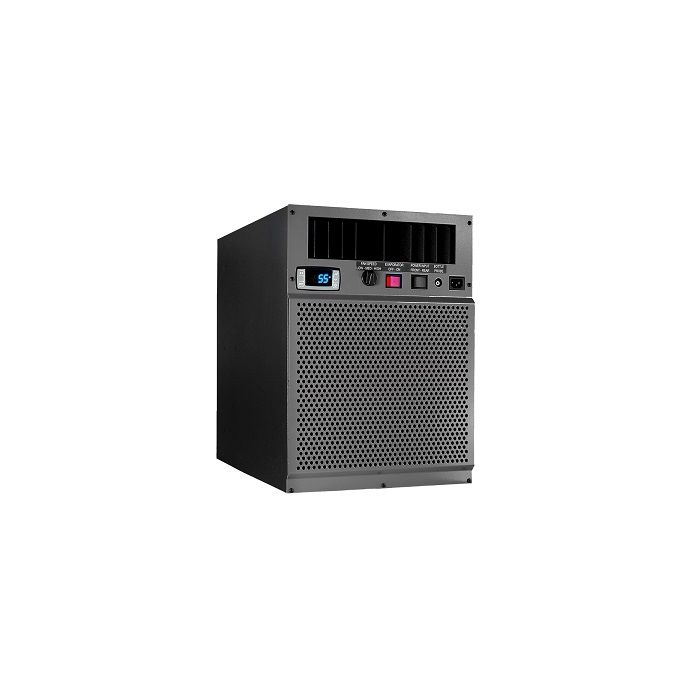

CellarPro 4200VSi-L Leather Cooling System
CellarPro 4200VSi-L Leather Cooling System
Designed to maintain optimaly temperature and humidity conditions for short and long term storage of fine leather, and rated for internal applications, the 4200VSi-L features variable-speed fans with a "high" setting for maximum performance in high-temperature (+115°F) environments and a "low" setting for super-quiet operation. Additional features include a thermostatic heating element and 1/2" I.D. drain line, electronic temperature and LED display.
CellarPro 4200VSi-L Leather Cooling System (SKU 4200VSi-L). CellarPro's 4200VSi-L 1/3 Ton Nominal AV equipment refrigeration system offers high-power variable-centrifugal fans, allowing the user to choose between maximum performance and super quiet operation. CellarPro's 4200VSi-L leather cooling system is designed to handle extreme environments (up to 115°F). This unit should be used for interior through-the-wall installations. The cooling unit also can be located remotely, and ducted with our duct kit and remote control accessories.
The hot air intake/exhaust can be ducted up to 100 equivalent feet (50 feet per duct) without an inline fan, or 200 equivalent feet (100 feet per duct) with an inline fan. The cold air intake/exhaust also can be ducted up to 100 equivalent feet (50 feet per duct).
Optimal conditions for leather storage consist of steady temperatures around 65-70°F and relative humidity ranging from 45-55% with limited fluctuations and ample airflow. Our 4200VSi-L refrigeration system includes a 1/2-inch condensate drain line and 200W heating element to burn off excess condensate, and an extra defrost sensor to prevent ice buildup.
- Startup 42 Amps
- Compressor Amps 1/2 Ton Nominal
- Unit Amp Rating 11.5 Amps (high fan speed)
- Total Watts with Evaporator On / Med Fan 960
- Total Watts with Evaporator Off / Med Fan 760
- Height 19.6 in
- Width 14.1 in
- Depth 25.1 in
- Capacity 4905 BTUH @ 72℉
- Weight 155 lbs.
- AMPS Starting 42 Amps
- Electrical Requirements 115V AC / 60Hz
The CellarPro 4200VSi-L Cooling Unit is engineered to maintain ideal temperature and humidity conditions for storage of expensive Leather products. 4200VSi-L uses an optimized compressor and oversized coils to generate cool, consistent 72-degree temperatures with minimal noise.
Designed for indoor use only, 4200VSi-L units can operate in environments ranging from 115℉ to 40℉ out of the box. To operate the unit in colder temperatures, please see modifications listed on the Options & Upgrades tab.
- This unit can be configured to operate in extreme temperature conditions (-20℉ to 115℉). If the unit's location does not provide sufficient room for airflow, you may need to purchase a rear duct kit.
- Dual high-output centrifugal fans come with variable speed settings for your choice of maximum cooling power at the high fan speed, or super-quiet operation (53.7 decibels) at the low fan speed.
- Adjustable humidity control combines a high-output compressor with flexible fan cycles to maintain a recommended level of moisture inside your cellar.
- Extra-large coils generate maximum cooling power inside the cellar.
- Excess condensate is managed with a high- capacity stainless steel drain pan, welded 1/2" drain line and 200W electric heating element with "On/Off" Control.
- Commercial-grade Electrofin coating protects the evaporator coils from leaks and corrosion.
- Intuitive LED display panel with digital programmable thermostat is simple and easy to use.
- Energy-saver mode, quick-chill mode, and auto-defrost cycle provide convenient solutions to common cellar needs.
- Unit operates with minimal vibrations and less noise than comparable units from competitors.
- Audible and visual alarms and maintenance- needed indicator protect the cooling unit and the wine cellar.
- With dual power sources and a 10-foot power cord, the unit can be plugged into a receptacle from either the front or the rear of the cooling unit, providing flexibility for most installations.
- Our easy-access disposable air filter protects the condenser coils and increases the expected useful life of the cooling unit.
- Adjustable mounting brackets, included as standard equipment, ensure easy installation.
- Removable steel case provides access to the internal components for servicing and repair.
- CellarPro's 5-Year Standard Warranty, the most thorough in the industry, protects the unit against manufacturing defects.
- An optional Extended Warranty is available for additional protection.
- ETL Tested and Certified to rigorous UL Standards for safety.
- CellarPro 4200VSi-L units are self-enclosed, fully-charged units designed to be installed through-the-wall and sized to fit in between standard wall studs.
- 4200VSi-L units also can be located remotely from the cellar with the addition of one of our front duct packages. Offered with or without insulated flex ducting, in a choice of configurations for low or high humidity conditions, our front duct packages allow these cooling units to be ducted up to 50 equivalent feet away from the cellar and requires 8-inch (or greater) ducting from start to finish.
- When calculating equivalent feet, each 90- degree turn counts for 8 feet.
- For remote or inaccessible installations, we offer a remote control display kit which is wired to the cooling unit and allows the digital display to be mounted inside or outside the cellar.
- 4200VSi-L units require fresh air intake at the rear of the cooling unit. If sufficient space does not exist to provide sufficient airflow to the rear of the cooling unit, you may need our rear duct kit.
- 4200VS Series cooling units can be installed completely inside the wine cellar when used with our rear duct kit, which allows you to duct the supply and return airflows from the rear of the cooling unit up to 100 equivalent feet (50 feet per duct).
- For installation in environments below 40℉, 4200VSi-L units require our Compressor Heater.
- For installation in environments below 20℉ down to -20℉, we recommend our Fan-Cycling Switch (P/N 6972) combined with our compressor heater.
- The front of the cooling unit should never be exposed to temperatures below 32℉.
- A CellarPro cooling unit must always be used in the upright position, and should never be operated on its side or upside down.
- We ship these units strapped to a pallet via common carrier with curbside delivery. Inside delivery is available for an additional charge.
Manuals & GuidesError filtering template: Warning: Undefined array key "url" in /var/www/hwpstaging/htdoc/vendor/magento/module-widget/Model/Template/Filter.php on line 181
CellarPro Manufacturer Warranty
CellarPro Wine Cooling Units 1800 QTL / QT / XT / XTS: For five years from the date of purchase, your CellarPro warranty covers all parts and labor to repair or replace any components in the wine cooling unit that prove to be defective in materials or workmanship.
1800 XT-220V: For two years from the date of purchase, your CellarPro warranty covers all parts and labor to repair or replace any components in the wine cooling unit that prove to be defective in materials or workmanship.
4200VSi / VSx: For five years from the date of purchase, your CellarPro warranty covers the internal compressor if it proves to be defective in materials or workmanship. In addition, for two years from the date of purchase, your CellarPro warranty covers all parts and labor to repair or replace any components the wine cooling unit that prove to be defective in materials or workmanship.
For all products covered by the terms of this warranty, CellarPro will repair or replace the original cooling unit with a new or refurbished cooling unit and, once replaced, the original cooling unit must be returned to CellarPro.
All service provided by CellarPro under the above warranty must be performed by CellarPro or a designated repair facility unless otherwise specified by CellarPro. Purchaser is responsible for shipping the wine cooling unit to and from CellarPro or to and from a designated repair facility, and for removing and reinstalling the wine cooling unit from the wine cellar.
The limited warranty applies only to wine cooling units purchased from the factory or an authorized dealer. Damage caused by others or by any cause beyond the control of CellarPro, shall not be considered defects in material or workmanship and are not covered by the warranty. The limited warranty does not cover any parts or labor to correct any defect caused by negligence, commercial use, accident, or improper use, maintenance, installation, service or repair.
THE REMEDIES DESCRIBED ABOVE FOR EACH WARRANTY ARE THE ONLY ONES, WHICH CELLARPRO WILL PROVIDE, EITHER UNDER THESE WARRANTIES OR UNDER ANY WARRANTY ARISING BY OPERATION OF LAW. CELLARPRO WILL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE BREACH OF THESE WARRANTIES OR ANY OTHER WARRANTIES, WHETHER EXPRESS, IMPLIED OR STATUTORY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights, which vary from state to state.
To receive parts and/or service contact CellarPro directly by calling (877) 726-8496.
CellarPro VS Series Extended Warranty
CellarPro extended warranty coverage for VS Series cooling units includes five (5) years of in-home coverage for the entire CellarPro cooling system. Designed to augment our standard warranty, our extended warranty increases and enhances coverage as follows:
- Increases the warranty period on the entire system from 2 to 5 years from the date of purchase
- Covers the cost of all parts and labor to repair or replace defective parts during the warranty period
- Covers the cost of in-home service during the warranty period
- Covers shipping costs via standard ground service during the warranty period
Please note the following terms and conditions:
- A deductible of $99 will be charged per incident
- Cleaning the coils and/or replacing the filter on the cooling unit are not covered by the extended warranty
- Scratches, blemishes and other cosmetic damage caused during transit and/or normal wear-and-tear are not covered by the extended warranty
- Issues related to improper installation and/or usage of the products are not covered by the extended warranty
- The extended warranty is available exclusively to residential customers in the continental U.S. for use in non-commercial applications
- The extended warranty is not available for 220V models
- The extended warranty does not cover accessories
- The extended warranty is not transferable
