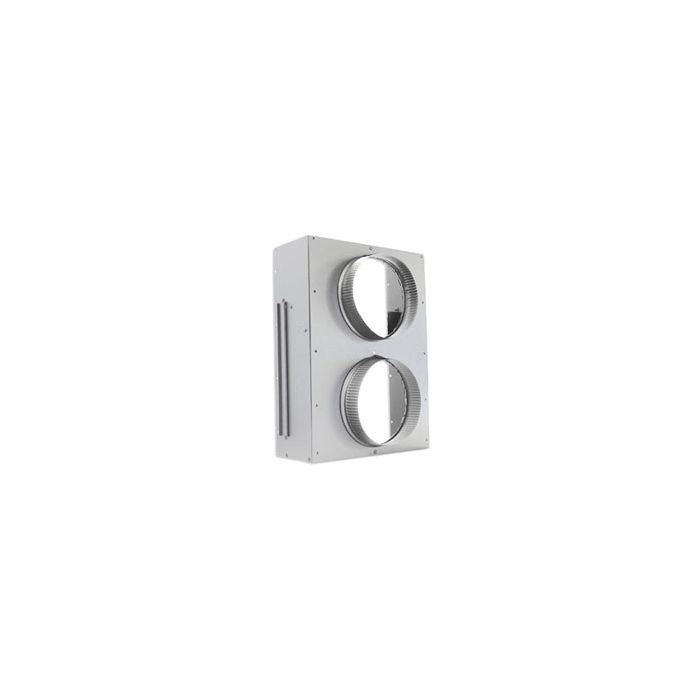

CellarPro 3200/4200 Rear Duct Kit w/ Inline Fan

CellarPro 3200/4200 Rear Duct Kit w/ Inline Fan

Custom duct hoods and inline fans allow the hot air intake/exhaust to be ducted up to 200 equivalent feet (100 feet per opening).

The duct openings are designed to attach to two 8" ducts for condenser intake and exhaust. A removable slot plate provides easy access to our air filter, while the inline fan receives switched power from the cooling unit.

This kit includes: rear vent cover, 240 CFM 8- inch inline fan and 50 feet (2x25) of 8-inch insulated (R-6) ducting.

Please note: The high fan speed setting is recommended as the duct run increases in length.

Features

• Attaches easily to the rear of 3200 and 4200 wine cooling units
• Provides quick access to removable air filter
• Designed for easy hook-up to 8" ducting
• Inline fan (3000RPM, 240 CFM) has a permanently lubricated, impedance protected motor
• Heavy gauge plated steel brackets
• Switched power to match the cooling unit
• 50 feet of 8-inch insulated ducting (R-6) included

Manuals & Guides

• Installation Diagram
