CellarPro 3000Sh Refrigeration System
CellarPro 3000Sh Refrigeration System
The CellarPro 3000Sh Refrigeration System is designed for wine cellars up to 600 cubic feet and rated for internal or external (see notes below) applications. This 1/4-ton nominal refrigeration system allows the noise from the condensing unit to be removed from living areas and eliminates the need for large holes in your cellar wall. This is achieved by separating the evaporator unit from the condensing unit.
Only a few small openings for the line-set and drain line are required to connect the evaporator and condensing units. Inside the cellar, the evaporator unit is designed to be mounted on the wall near the top of the wine cellar. Outside the cellar, the condensing unit is attached to the evaporator unit by a line set (sold separately) that can run up to 100 equivalent feet (and up to 30 vertical feet).
Important Notes: External installations require our outdoor hood (sold separately). For exposure to environments below 40°F, our compressor heater modification is required. Access to the left and right side of the evaporator unit is required for installation. All split systems must be installed and charged on site by a qualified HVAC professional. Line-set equivalent feet must be calculated in accordance with ASHRAE guidelines.
Wiring Information
CellarPro Split wine cellar refrigeration systems offer a choice of wiring: 1. the Condensing unit can be electronically controlled by and wired to the Evaporator (single power source on the Evaporator side), or 2. the Condensing unit can be controlled by a Solenoid valve (dual power source, one each to the Evaporator and Condensing units.) The first choice (with electronic wiring) will allow the Condensing unit to be used in temperatures down to 20°F with the addition of our compressor heater, or -20°F with the addition of our low ambient kit. The second choice (with valve control) will allow the Condensing unit to be used in temperatures down to 20°F with the addition of our compressor heater, or 0°F with the addition of our low ambient kit.
Specifications
| Power/Rating | 115V AC / 60 Hz | System Amps |
|---|---|
| Startup | 28.2 Amps |
| Unit Amp Rating | 7.4 Amps (high fan speed) |
| Total Watts | 526 (med fan speed) |
| BTUH @55 °F/ Evaporator Decibels | |
| Low Fan Speed | 2144 / 51 dbA |
| Med Fan Speed | 2398 / 55 dbA |
| High Fan Speed | 2491 / 63 dbA |
| 1/4 Ton Nominal | |
| Condensing Unit Decibels | |
| Indoor | 64 |
| Outdoor | 62 |
Features
- Up to 600 Cu. Ft. Capacity (1/4 Ton Nominal)
- Engineered to operate in interior and external environments (0°F to 110°F)
- For temperatures below 40°F, our compressor heater modification is requred
- Schraeder Valve for Refrigerant Charge (R134A) and Superheat Adjustment
- Multiple Knock-Outs and Access Points
- Expansion Valve and Liquid Line Solenoid Valve (optional) come Factory Installed
- Choice of Single or Dual Power Supplies for Evaporator and Condenser Units
- Choice of Electronic or Valve Control for Condensing Unit
- Evaporator and Condensing Unit are Factory Pressurized and Shipped with Dry Nitrogen
- High-Performance Condensing Unit
- Variable Speed Evaporator Fan for Super- Quiet Operation or Max Performance
- Oversized Coated Evaporator Coils
- Adjustable Humidity Control via Digital Display
- 1/2" ID Drain Line
- 56 Decibels at Low Fan Speed (Evaporator)
- Electronic Thermostat, Digital LED Display and Audible/Visual Alarms
- Auto-Defrost Cycle
- Sight Glass and Liquid Line Filter/Drier
- Oversized Receiver for Long Line Sets
- Line-sets can run up to 100 equivalent feet (and up to 30 vertical feet)
- Adjustable Low Ambient Fan Cycling Control
- Auto Reset High Pressure Switch
- Compatible with a Dedicated 15-Amp Circuit
- Optional Bottle Probe
- Optional Outdoor Cover
- ETL Approved and Certified to UL Standards
Upgrades
CellarPro Split System Outdoor Hood
Price: $300.00
CellarPro Cold-Temperature Compressor Heater
Price: $99.00
CellarPro Bottle Probe
Price: $99.00
CellarPro Remote Display/Control Unit
Price: $225.00
Line Set for CellarPro Split Mini 3000S
Price: $140.00
Refrigerant Heat Exchanger
Price: $50.00
Additional Info

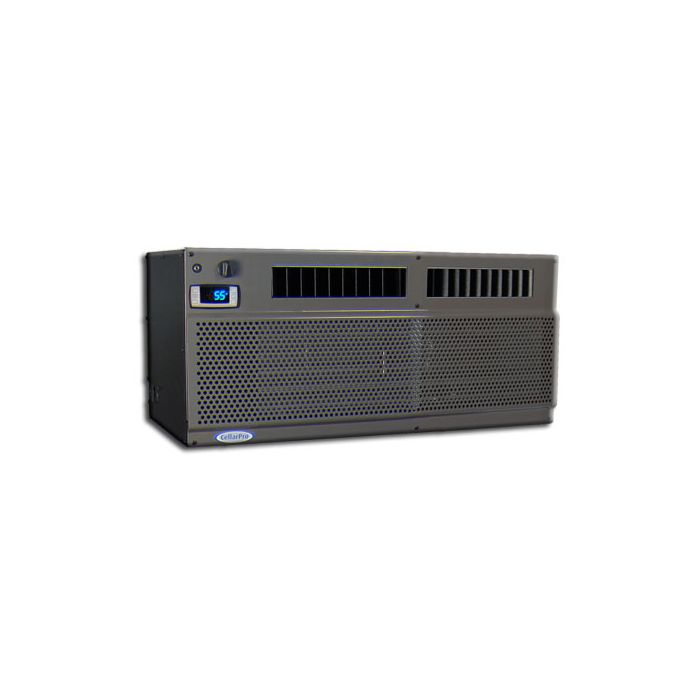

Our advanced evaporator unit uses a variable- speed centrifugal fan with three settings, including a "high" setting for maximum performance and a "low" setting for super-quiet operation. The evaporator should be mounted close to the ceiling inside the cellar.
Our high-performance condensing unit is designed to handle environments ranging from 0°F to 110°F. The condensing unit requires 12 inches of unobstructed space in front of the coils, and requires approx. 600-700 CFM of ventilation when installed in a confined space.
CellarPro Split wine cellar refrigeration systems offer a choice of wiring: 1. the Condensing unit can be electronically controlled by and wired to the Evaporator (single power source on the Evaporator side), or 2. the Condensing unit can be controlled by a Solenoid valve (dual power source, one each to the Evaporator and Condensing units.) The first choice (with electronic wiring) will allow the Condensing unit to be used in temperatures down to -20°F.
Manuals & Guides
- CellaPro Split System Owners Manual - PDF
- CellaPro Split System Cut Sheet
- CellaPro 3000Sh Mounting Instructions
- CellaPro 3000Sh Wiring Diagram
- CellaPro 3000Sh Piping Schematic
- CellarPro Split System Configuration
Warranty
CellarPro Manufacturer Warranty
1800 QTL / QT / XT / XTS: For five years from the date of purchase, your CellarPro warranty covers all parts and labor to repair or replace any components in the wine cooling unit that prove to be defective in materials or workmanship. Click here for information about our extended warranty.
1800 XT-220V:For two years from the date of purchase, your CellarPro warranty covers all parts and labor to repair or replace any components in the wine cooling unit that prove to be defective in materials or workmanship.
1800 XTSX, 3200 VSi/VSx, 4200 VSi/VSx: For five years from the date of purchase, your CellarPro warranty covers the internal compressor if it proves to be defective in materials or workmanship. In addition, for two years from the date of purchase, your CellarPro warranty covers all parts and labor to repair or replace any components in the wine cooling unit that prove to be defective in materials or workmanship. Click here for information about our extended warranty.
4200VSi / VSx - 220V/50Hz: For one year from the date of purchase, your CellarPro warranty covers all parts and labor to repair or replace any components in the wine cooling unit that prove to be defective in materials or workmanship.
Split Systems: For five years from the date of purchase, your CellarPro warranty covers the internal compressor if it proves to be defective in materials or workmanship. In addition, for two years from the date of original delivery, your CellarPro warranty covers all parts and labor to repair or replace any components in the wine cooling unit that prove to be defective in materials or workmanship. The warranty will not be activated until the Support and Data Service Sheet has been completed and submitted to CellarPro. The warranty period starts from the time of purchase, regardless of the time of activation.
For all products covered by the terms of this warranty, CellarPro will repair or replace the original cooling unit with a new or refurbished cooling unit and, once replaced, the original cooling unit must be returned to CellarPro.
All service provided by CellarPro under the above warranty must be performed by CellarPro or a designated repair facility unless otherwise specified by CellarPro. Purchaser is responsible for shipping the wine cooling unit to and from CellarPro or to and from a designated repair facility, and for removing and reinstalling the wine cooling unit from the wine cellar.
The limited warranty applies only to wine cooling units purchased from the factory or an authorized dealer. Damage caused by others or by any cause beyond the control of CellarPro, shall not be considered defects in material or workmanship and are not covered by the warranty. The limited warranty does not cover any parts or labor to correct any defect caused by negligence, commercial use, accident, or improper use, maintenance, installation, service or repair.
THE REMEDIES DESCRIBED ABOVE FOR EACH WARRANTY ARE THE ONLY ONES, WHICH CELLARPRO WILL PROVIDE, EITHER UNDER THESE WARRANTIES OR UNDER ANY WARRANTY ARISING BY OPERATION OF LAW. CELLARPRO WILL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE BREACH OF THESE WARRANTIES OR ANY OTHER WARRANTIES, WHETHER EXPRESS, IMPLIED OR STATUTORY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights, which vary from state to state.
To receive parts and/or service and the name of a CellarPro designated repair facility nearest you, contact your CellarPro dealer. You may also contact CellarPro directly by calling us at 1.877.726.8496
